Grey Goat Left Hand Sidelite Mounted Transom Patch with Support Fin Bracket

The Grey Goat Left Hand Sidelite Mounted Transom Patch with Support Fin Bracket is designed to support a transom from a sidelite glass panel and is compatible with both 2-3/4" (70 mm) and 2-9/16" (65 mm) pivot setback door patch fittings. It accommodates 3/8" or 1/2" (10 or 12 mm) glass and is available in left and right-handed configurations.

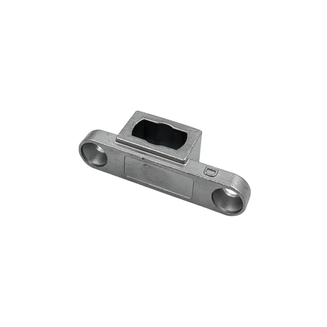

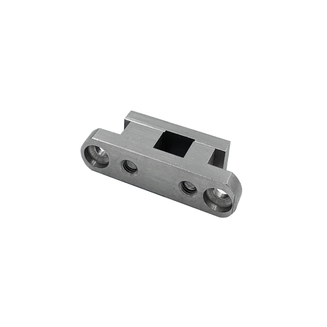

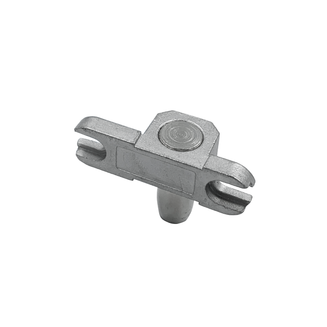

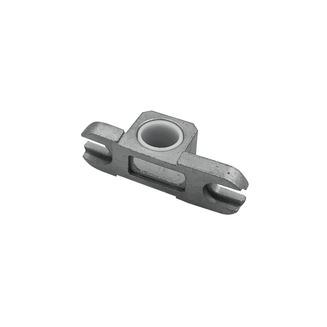

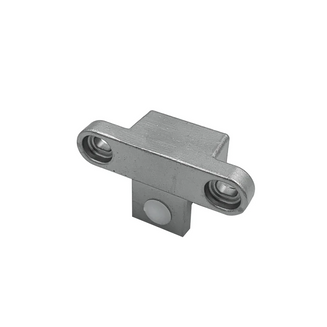

This patch fitting includes a PFINTOPPIV insert for door mounting with the Grey Goat PFIT20A or PFIT20ADJ Top Door Patch Fitting. For single door applications, the insert can be removed from the non-hinged side to allow for double swinging doors. To create a one-way door, the PFINDS Transom Patch Door Stop Insert can be used.

The support fin glass should be sized according to approved design standards (refer to manufacturer's manual) and anchored to the ceiling with a ceiling-mounted support fin bracket. For transoms weighing over 100 lbs. (45.4 kg), ceiling support is essential to prevent patch slippage. Suitable options include the PFIT94 Patch Fittings. For additional assistance, please contact our Technical Sales Department.

Constructed from Aluminum with a custom Grade 304 Stainless Steel cover plate, the Transom Patch is suitable for both interior and exterior applications.

Finishes Available:

• Brushed Stainless
• Matte Black
• Polished Stainless
• Custom Finishes Available (email: products@ggshardware.com).

Key Features:

• Maximum Weight: 100KGs (220.462LBS)
• Maximum Door Width: 39" (1000mm)
• Maximum Height : 102" (2590mm)

• Cycle Tested for 500,000 Operation
• 2-Year Warranty

Glass fabrication required. View CAD/PDF product drawings  for more details.

For additional information or custom finish requests, contact us at: products@ggshardware.com.
