Lead Time: 3 months.

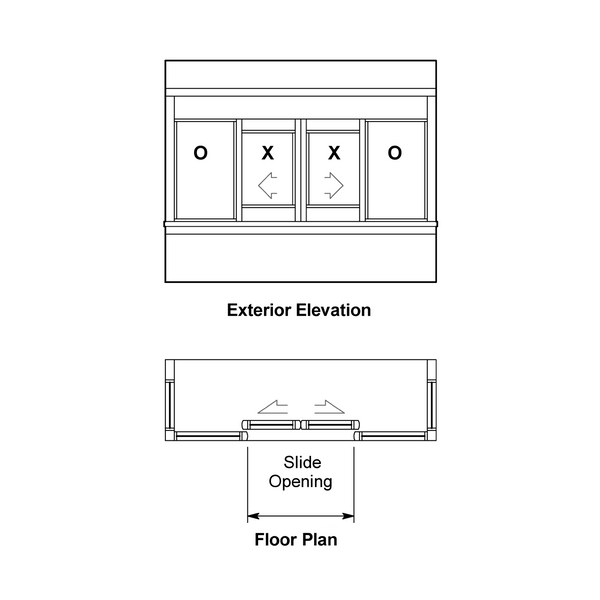

Drive-Thru Window - Automatic Biparting - 8200TS Projected

The 8200TS Automatic Biparting Drive-Thru Window offers efficient and secure service with a sleek, projected design. Featuring thin stile panels and 1/4" (6 mm) clear tempered glass, along with a durable 1/4" (6 mm) glass canopy, it combines functionality with a modern aesthetic, ideal for high-traffic locations.

Key Features:

• Automatic Operation: Bi-parting with smooth operation for quick service.
• Glass: 1/4" (6 mm) clear tempered glass and 1/4" (6 mm) glass canopy.
• Design: Thin stile panels for a contemporary, clean appearance.
• Counter & Apron: Stainless steel counter and metal apron for durability.
• Electrical: Requires 120VAC, 60 cycle, single-phase, 15-amp service; average current draw is under 2 amps. Up to 5 units may be connected to 1 circuit.
• Security: Auto-locks engage when closed and unlock upon activation. Manual locks included for added security.
• Actuation Options: Pushbutton, header-mounted presence sensor, or Hip-Scan photoelectric beam at the counter.

Customizable Finishes:

• Click Here to see customizable finishes catalogue

Installation & Operation:

• Perimeter-mounted within rough opening with minimum 1/4" shim space.
• A 5-amp circuit breaker is included with each unit.
