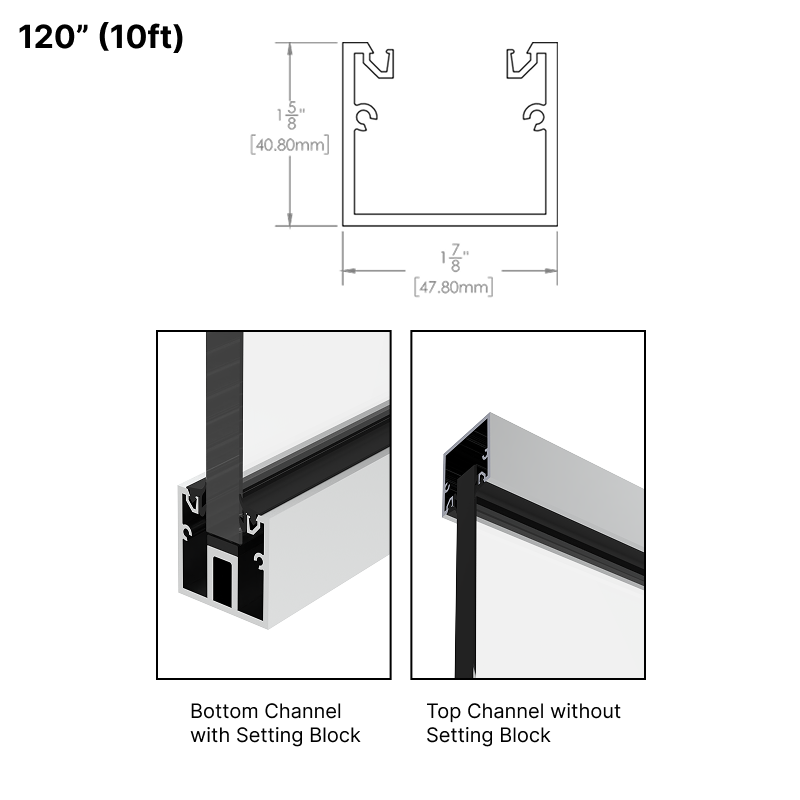

Heavy Duty Architectural U-Channels for Storefronts

The Architectural U-Channels offer a robust and streamlined solution for securing glass panels in storefront applications. Designed with durability and ease of installation in mind, these channels provide exceptional support and aesthetics for 3/4" (19mm) & 5/8" (15mm) glass panels.

Key Features:

• Application: Designed for heavy-duty storefront and commercial glass panel installations.
• Length: 120" (10 ft.).
• Glass Compatibility: Includes roll-in gasket for 3/4" (19mm) glass; 5/8" (15mm) gasket available upon request.
• Included Gasket: Includes 120" of roll-in gasket for 3/4" (19mm) glass.
• Function: Provides secure support and a clean finished appearance for fixed glass panels.
• Installation: Designed for reliable and streamlined installation in commercial glass systems.
• Use: Suitable for architectural glazing and storefront applications requiring heavier glass compatibility.

Available Accessories (Sold Separately):

• Neoprene Setting Blocks: [AUSB4] Recommended 4" blocks (x2 per glass panel) for stable and cushioned installations.

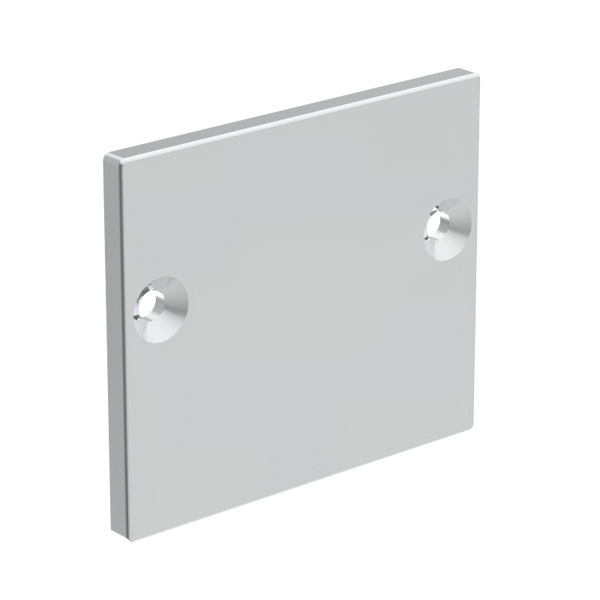

• Endcaps: [HDAUEND] Sold separately for a clean and polished finish.

Available Finishes:

• Satin Anodized
• Matte Black

• Brushed Stainless Steel

For technical inquiries or to request a quote, please contact us at products@ggshardware.com. (Please include relevant drawings for accurate quotations.)
