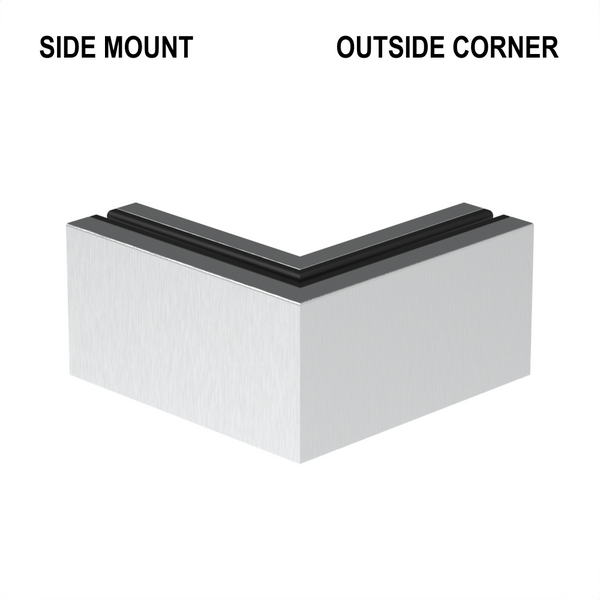

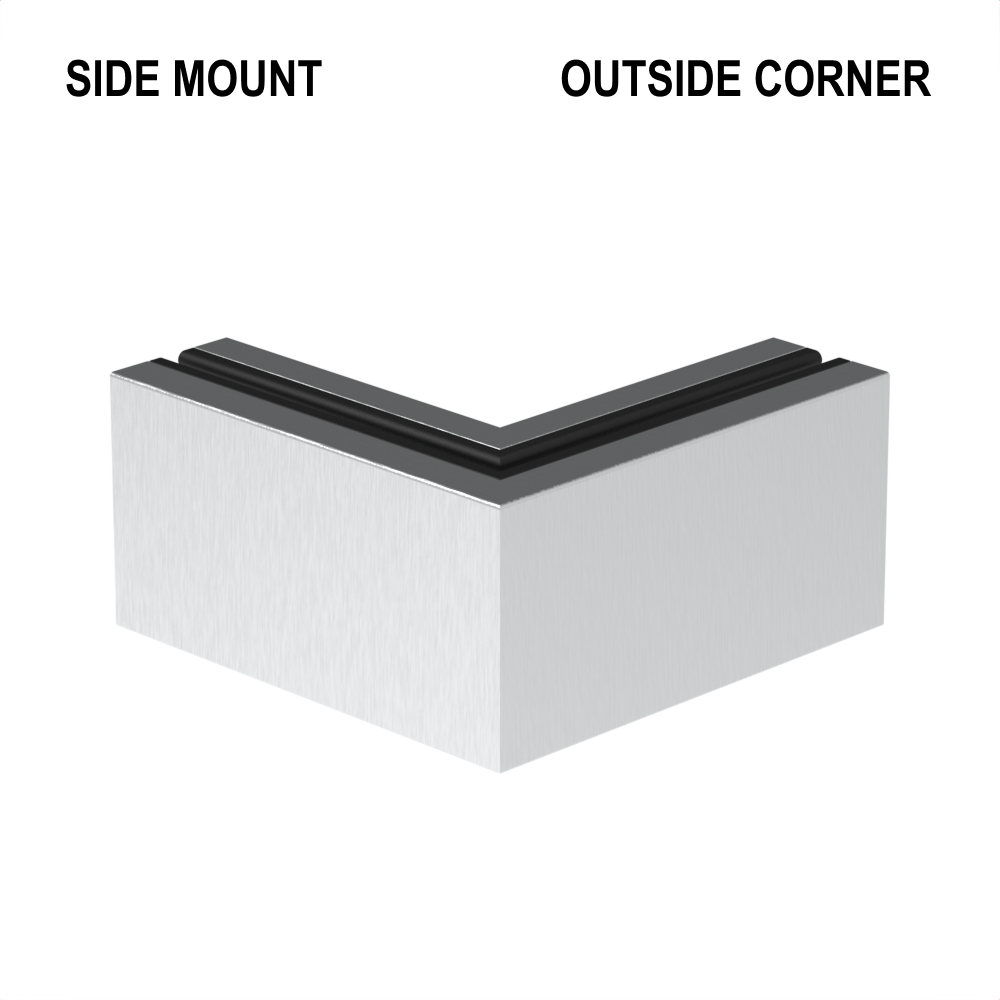

GGH CORE-LOCK Series Base Shoe – 72 Series 90° Side Mount Corner

The GGH CORE-LOCK 72 Series 90° Corner Base Shoe is designed to provide a secure and seamless solution for glass panel installations at corner transitions. Featuring a precision locking system and clean angular design, this base shoe ensures accurate alignment and strong support at 90-degree connections. Ideal for railings, partitions, and architectural glass applications, it delivers both performance and aesthetic continuity in residential and commercial projects.

Specification:

• 90° Corner Side Mount CORE-LOCK Base Shoe – 72 Series.
• Suitable for glass from 1/2" (12 mm) thickness.
• Designed for outside corner applications.
• Material: Aluminum.


Finishes Available:

• Brushed Anodized Aluminum
• Matte Black Anodized Aluminum

Kit Include:

• 90° Corner Base Shoe with side mount outside corner configuration.
• Aluminum/Stainless Steel cladding and gaskets x 2 pcs.

Sold Separately:

• 3M Hi-Bond Adhesive Tape.
• 3/8" x 5-15/16" Lag bolt for wooden installation.
• 3/8" x 5"  Anchor bolt for concrete installation.


View CAD/PDF product drawings for more details.

For additional information or custom finish requests, contact us at: products@ggshardware.com
