Solidity Series Hydraulic Bottom Patch Fitting

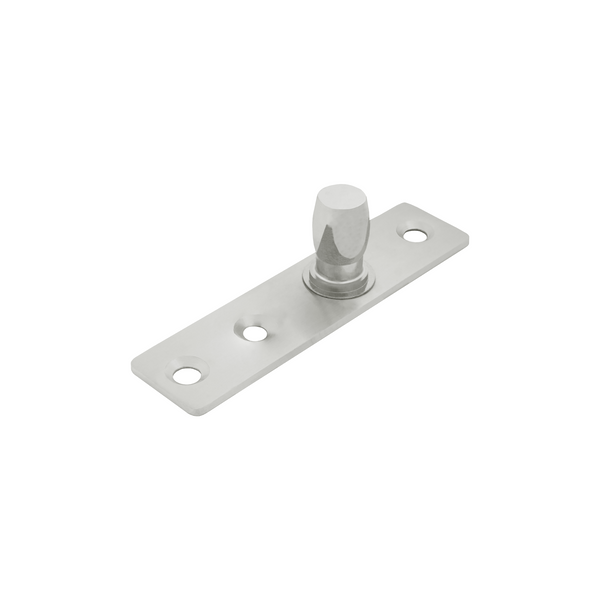

GGH’s Solidity Series Hydraulic Bottom Patch Fitting is a top-tier solution for commercial doors, office partitions, interior fit-ups, wine rooms, and more. It is designed for seamless integration with our Patch & Transom fittings & Commercial Ladder Pulls. Engineered for high-performance and durability, this fitting supports 10mm (3/8") and 12mm (1/2") glass and features precise manufacturing tolerances of 0.005mm to 0.01mm. It is cycle-tested for up to 500,000 open/close operations, ensuring reliability in high-traffic areas.

The system offers two adjustable speed settings with a Hold Open function at 90 degrees, making it easy to control door movement. It is designed to handle a maximum door weight of 150KGs (330.69) and a door width of up to 48" (1219.2mm). The bottom plate allows for convenient adjustment, ensuring flexibility during installation.

Constructed from Grade 304 Stainless Steel with a custom aluminum cover plates, the Solidity Series is suitable for both interior and exterior applications.

Finishes Available:

• Brushed Stainless
• Matte Black
• Polished Stainless
• Satin Brass
• Satin Anodized
• Custom Finishes Available (email: products@ggshardware.com).

Key Features:

• Maximum Weight: 150 Kg (330.70 lb)
• Maximum Door Width: 48" (1000mm)
• Two Adjustable Speed Settings
• Hold Open at 90 Degrees
• Cycle Tested for 500,000 Operations
• Made of Grade 304 Stainless Steel / Aluminum Cover Plates
• 2-Year Warranty

Glass fabrication required. View CAD/PDF product drawings  for more details.

For additional information or custom finish requests, contact us at: products@ggshardware.com.
