Grey Goat Bottom Patch Fitting

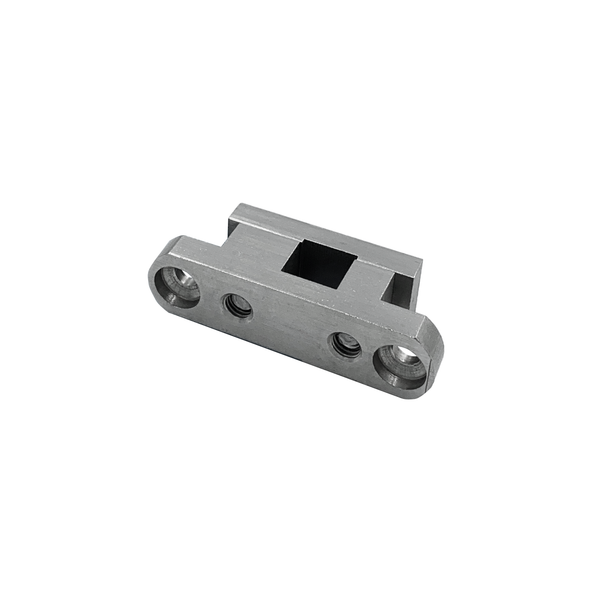

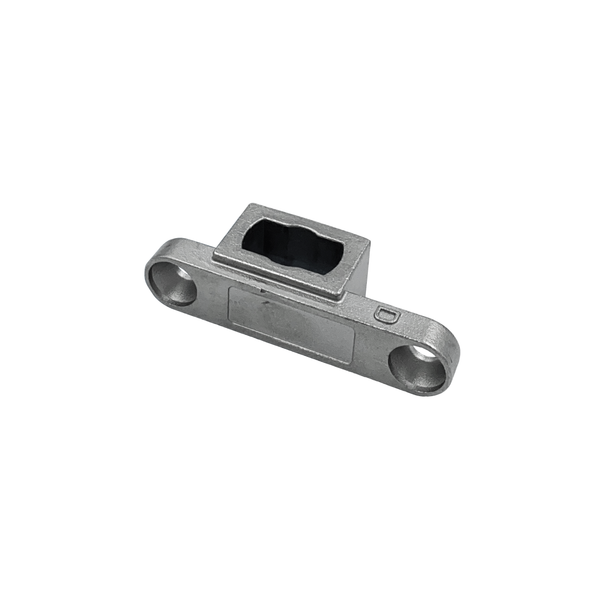

The Grey Goat Bottom Door Patch Fitting, complete with the PFINTBOT insert & PPIV402. This fitting offers both versatility and durability. Included gaskets enable compatibility with 3/8" or 1/2" (10 or 12 mm) glass, ensuring a secure and snug fit. Ideal for any sophisticated door setup, the Grey Goat Top Door Patch Fitting brings quality and style to every installation.

Constructed from Aluminum with a custom Grade 304 Stainless Steel cover plate, the Bottom Patch Fitting is suitable for both interior and exterior applications.

Finishes Available:

• Brushed Stainless
• Matte Black
• Polished Stainless
• Satin Brass
• Satin Anodized
• Custom Finishes Available (email: products@ggshardware.com).

Key Features:

• Maximum Weight: 88KGs (194 LBS)
• Maximum Door Width: 42" (1000mm)
• Maximum Height : 102" (2590mm)

• Cycle Tested for 500,000 Operation
• 2-Year Warranty

Glass fabrication required. View CAD/PDF product drawings  for more details.

For additional information or custom finish requests, contact us at: products@ggshardware.com.
