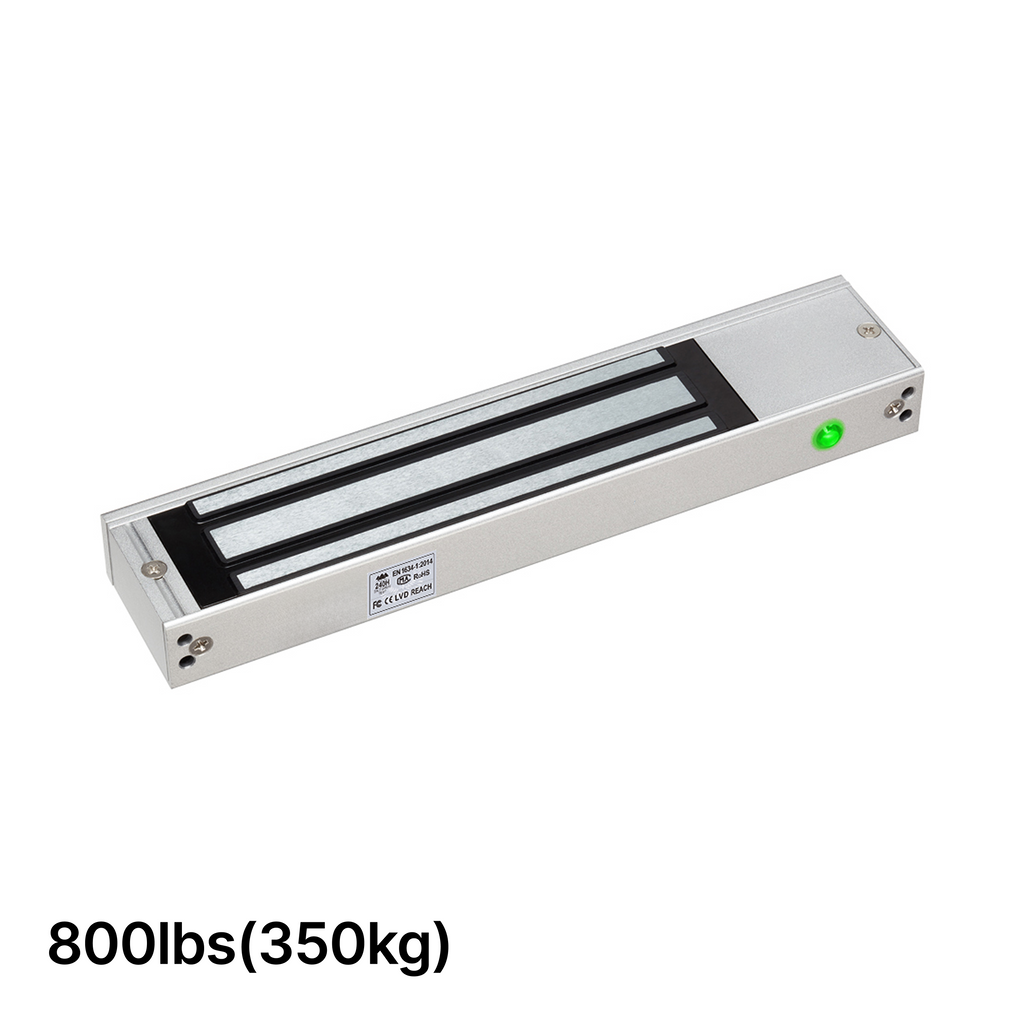

GGH Single Door Magnetic Lock with LED - 800lbs (350kg)

The Single Door Magnetic Lock with LED is designed to provide secure electromagnetic locking for commercial access control systems. Built with an anodized housing and flame-retardant lock body, it delivers reliable holding force for wood, glass, metal, and fire-rated door applications.

This single-door magnetic lock includes an integrated LED indicator and lock status signal output for convenient monitoring when connected to compatible access control systems. Its anti-residual magnetism design allows fast release after power is removed, helping support smooth and dependable operation.

Key Features:

• Application: Designed for electromagnetic locking with LED lock status indication in single-door access control applications.

• Holding Force: 800 lbs. (350 kg).

• Lock Type: Single-door electromagnetic lock with LED and signal output.

• Input Voltage: 12V DC default.

• Operating Current: 500 mA ±10% at 12V DC.

• LED Indicator: Red indicates locked; green indicates unlocked.

• Signal Output: Lock status NO/NC/COM.

• Glass Compatibility: Suitable for 3/8" (10mm) to 11/16" (17mm) glass.

• Door Compatibility: Suitable for wood doors, glass doors, metal doors, and fire-rated doors.

• Mounting Type: Header or door frame mount.

• Housing Finish: Anodized hard plating.

• Lock Body: Flame-retardant resin encapsulation, V-0 grade.

• Residual Magnetism: Unlocks within 0.5 seconds after power removal.

• Operating Temperature: -22°F to 151°F (-30°C to +66°C).

• Operating Humidity: 0–95% relative humidity, non-condensing.

• Salt Spray Test: 240-hour exposure.

• Testing: Tested for 1,000,000 operating cycles.

• Dynamic Impact Test: 45 J hammer impact, 5 continuous impacts.

• Compatibility: Suitable for armature plates, access control systems, power supplies, exit buttons, and compatible mounting brackets.

• Use: Indoor use only.
• Certification: MA, CE-EMC, CE-LVD, FCC, RoHS, REACH, WEEE, EN1634-1, TUV

Glass Fabrication Notes:

• Hollow metal doors require an 8mm inside hole and 16mm outside hole.

• Wood doors require an 8mm inside hole and 12.7mm outside hole.

• Metal surface doors require an 8mm inside hole and a 6.8mm hole tapped for an M8 x 1.25 thread.
