GGS LAG Wall Mounted Adjustable Sliding Glass Door Kit

The GGS LAG wall Mounted Sliding Door Kit is a robust and versatile system tailored for commercial applications. Designed for monolithic tempered glass doors, this kit offers durability, precision, and sleek aesthetics, making it an excellent choice for both interior and exterior use. Ideal for commercial and residential spaces, including offices, conference rooms, and modern interiors. This model is designed to attach a single sliding door to the inside of a wall. The wall needs to be strong enough to support the door properly for smooth operation.

Key Features:

• High-Quality Materials: Crafted from Grade 316 Stainless Steel for exceptional corrosion resistance and longevity.
• Built-in Door Lift Prevention: The concave-shaped roller keeps the slider securely in place, preventing it from lifting during movement.
• Adjustable Design: Ensures precise height and alignment for flawless operation.
• Glass Compatibility: Designed for tempered glass doors with varying thicknesses.
• Hustle Free Installation: The kit contains all essential hardware required for a seamless installation of 3/8" or 1/2" (10 or 12 mm) tempered glass panels.
• Smooth Sliding Mechanism: Designed and made for seamless and quiet movement.
• Versatile Applications: Suitable for both interior and exterior installations.

Specifications:

• Stainless Steel Rod: 108" length, 3/32" thickness

• Weight Capacity: Supports doors up to 220 lbs (100 kg)

• Door Size Compatibility:

  Specification	Measurement
  Minimum Door Width	37-13/16" (960 mm)
  Maximum Door Width	53-9/16" (1.36 m)
  Maximum Door Height	98-7/16" (2.5 m)

Kit Includes:

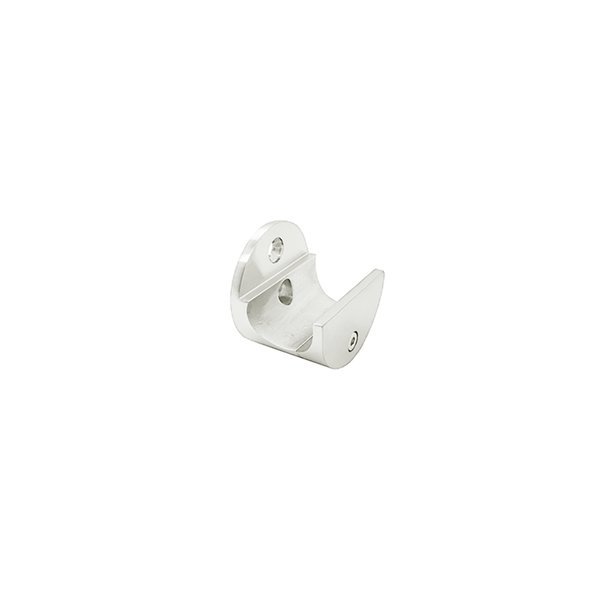

• Glass Mount Brackets X 5

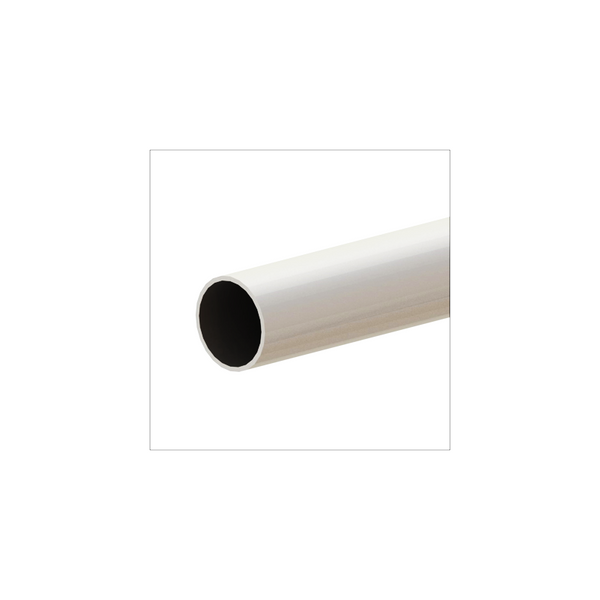

• Sliding Tube X 1
• Left Door Stop X 1
• Right Door Stop X 1

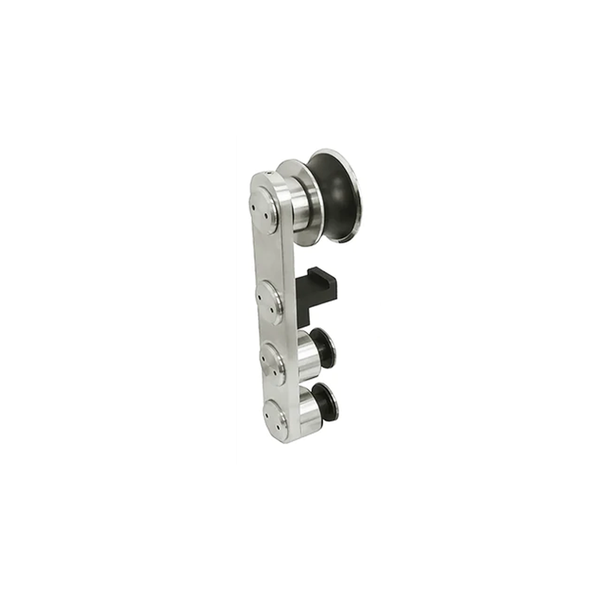

• Door Rollers X 2
• Thru-Glass Pull X 1
• Floor Guide X 1
• End Cap X 2

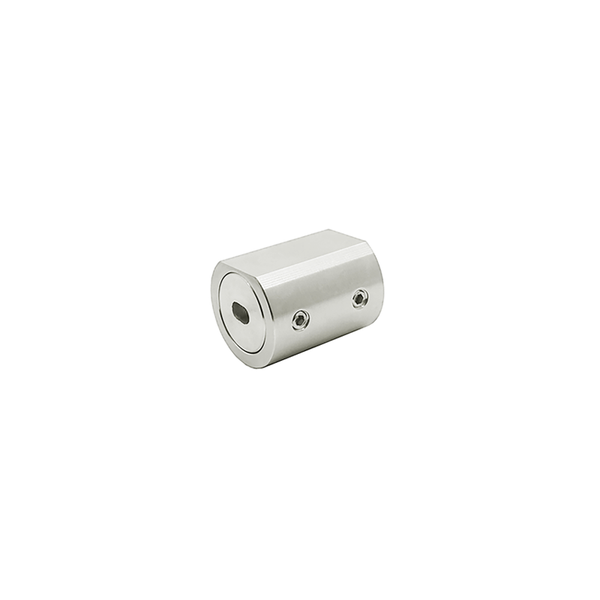

• Tube Support X 1 (For Wall Mount Only)

Finishes Available:

• Brushed Stainless Steel
• Matte Black (Electroplated)
• Polished Stainless Steel

For additional information, custom configurations, or technical inquiries, please contact us at products@ggshardware.com.
