ROCKWOOD Adjustable End Load Bottom Pivot

*Actual product colors may vary from the images shown.

Product Overview

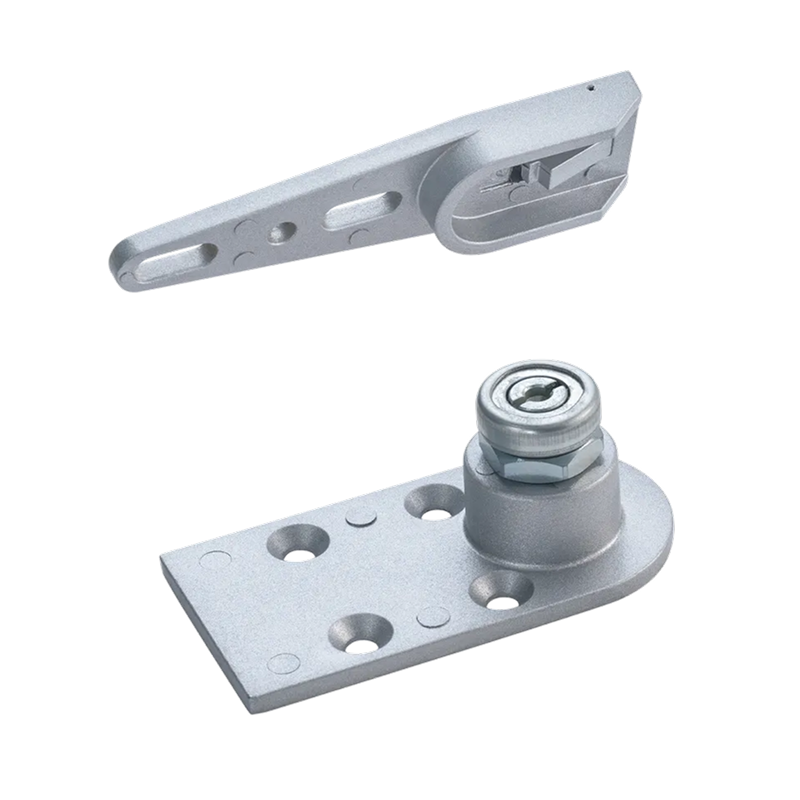

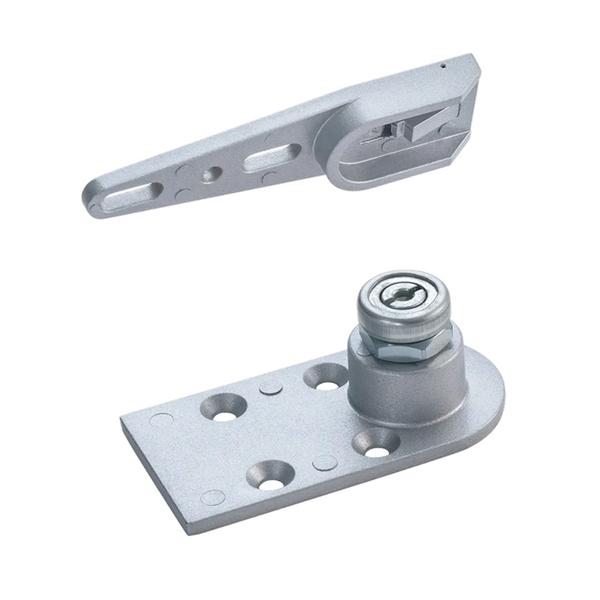

ROCKWOOD Adjustable End Load Bottom Pivot

The Rockwood Adjustable End Load Bottom Pivot is designed for mounting glass doors with bottom rails. Its end-load application provides a practical bottom pivot solution for compatible door rail assemblies and helps support smooth, reliable door operation.

Key Features:

Application: Designed for glass doors with bottom door rails.
Function: Provides bottom pivot support for compatible glass door systems.
Installation: Mounted to the floor or threshold.
Compatibility: Compatible with bottom door rails.
Material: Aluminum base material.
Maximum Door Weight: 200 lbs.
Door Clearance: Adjustable for door clearances from 3/8" to 3/4".
Use: Suitable for commercial and architectural glass door installations.

For technical inquiries or quotes, please contact us at products@ggshardware.com.
