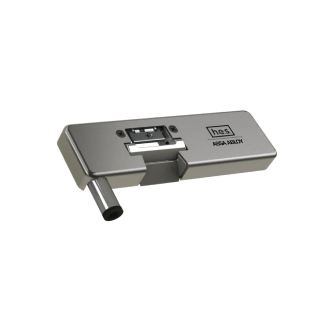

HES 9100 & 9200 Series Surface-Mounted Electric Strikes

The HES 9100 and 9200 Series are heavy-duty, surface-mounted electric strikes designed for glass doors equipped with tubular vertical rod exit devices. These strikes offer a low-profile design and retrofitting capabilities, ensuring seamless integration without the need for frame modifications.

Key Features:

• Retrofit-Friendly: Installs using existing header prep; no cutting required.

• Integrated Adjustability: Allows optimal latch positioning for demanding installations.

• Voltage Flexibility: Operates on 12–24 VDC with adaptable voltage sensing technology.

• Durable Construction: Stainless steel build with static strength of 1,500 lbs and dynamic strength of 70 ft-lbs.

• High Endurance: Tested for up to 1,000,000 cycles.

• Field Configurable: Selectable fail safe/fail secure modes and monitoring options.

• Certifications: ANSI/BHMA A156.31 Grade 1, UL 1034 burglary-resistant listed, UL 294, UL 305, and suitable for outdoor use.

Models Available:

• ESK-9100: For single-door applications.

• ESK-9200: For double-door applications.
