GGH CORE-LOCK Series Base Shoe – 72 Series Top Mount (120")

The GGH CORE-LOCK 72 Series Base Shoe is engineered to provide a secure and streamlined solution for mounting tempered glass panels in modern architectural applications. Designed with a precision locking system, this base shoe ensures easy installation, reliable performance, and clean aesthetics. Ideal for railings, partitions, and commercial storefronts, it delivers strength and versatility for both residential and commercial projects.

Specification:

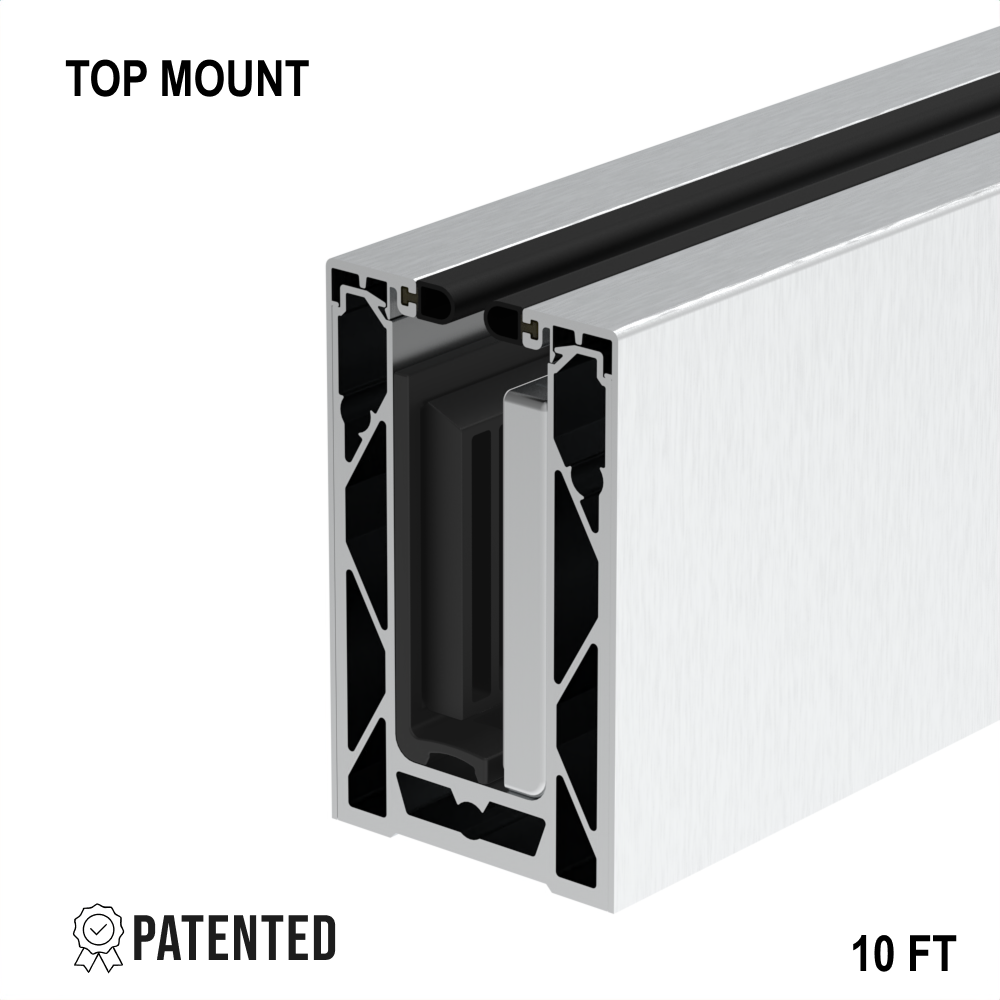

• Top Mount CORE-LOCK Base Shoe – 72 Series.
• Suitable for glass from 1/2" (12 mm) thickness.
• Base Shoe Length: 120" (10 FT).

• Glass height: 1" (24.91mm) above finished floor level.
• Material: Aluminum.


Finishes Available:

• Brushed Anodized Aluminum
• Matte Black Anodized Aluminum
• Brushed Stainless Steel
• Polished Stainless Steel

Kit Include:

• 120" Base Shoe with top mount configuration.
• Aluminum/Stainless Steel cladding and gaskets x 2 pcs.
• CORE-LOCK Clamp Pack x 12 pcs.
• Joining Pins x 3 pcs.
• End Caps x 2 pcs.

Sold Separately:

• 3M Hi-Bond Adhesive Tape.
• 3/8" x 5-15/16" Lag bolt for wooden installation.
• 3/8" x 5"  Anchor bolt for concrete installation.


View CAD/PDF product drawings for more details.

For additional information or custom finish requests, contact us at: products@ggshardware.com
