Sliding Doors - Glass Mount

About Sliding Doors - Glass Mount ?

The GGS LAG Glass Mount Sliding Door Kit is a robust and versatile system tailored for commercial applications. Designed for monolithic tempered glass doors, this kit offers durability, precision, and sleek aesthetics, making it an excellent choice for both interior and exterior use. Ideal for commercial and residential spaces, including offices, conference rooms, and modern interiors.

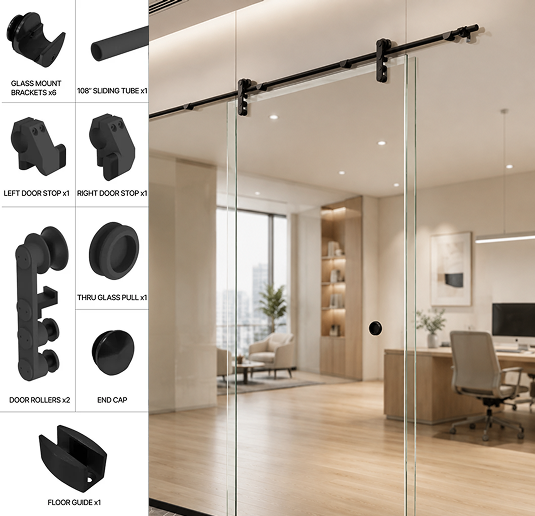

[LAGGM108] Commercial Sliding Door Kit - Glass Mount

The GGS LAG Glass Mount Sliding Door Kit is a robust and versatile system tailored for commercial applications. Designed for monolithic tempered glass doors, this kit offers durability, precision, and sleek aesthetics, making it an excellent choice for both interior and exterior use. Ideal for commercial and residential spaces, including offices, conference rooms, and modern interiors.

High-Quality Materials: Crafted from Grade 316 Stainless Steel for exceptional corrosion resistance and longevity.
Built-in Door Lift Prevention: The concave-shaped roller keeps the slider securely in place, preventing it from lifting during movement.
Adjustable Design: Ensures precise height and alignment for flawless operation.
Glass Compatibility: Designed for tempered glass doors with varying thicknesses.
Hustle Free Installation: The kit contains all essential hardware required for a seamless installation of 3/8" or 1/2" (10 or 12 mm) tempered glass panels.
Smooth Sliding Mechanism: Designed and made for seamless and quiet movement.
Versatile Applications: Suitable for both interior and exterior installations.

Finishes Available

Brushed Stainless Steel
Matte Black (Electroplated)Polished Stainless Steel
Satin Brass

Specifications

Stainless Steel Rod: 108" length, 3/32" thickness
Weight Capacity: Supports doors up to 220 lbs (100 kg)
Door Size Compatibility:

Specification	Measurement
Minimum Door Width	37-13/16" (960 mm)
Maximum Door Width	53-9/16" (1.36 m)
Maximum Door Height	98-7/16" (2.5 m)
