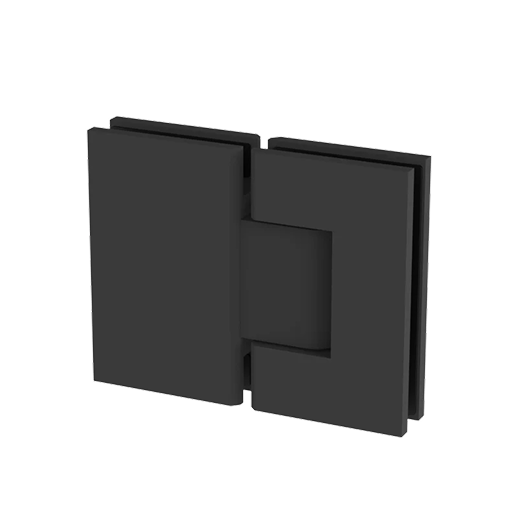

Swing Door System

• Materials: Constructed from high-quality brass for long-lasting durability and corrosion resistance.
• Glass Compatibility: Suitable for glass thicknesses from 5/16" to 1/2" (8 to 12 mm).
• Enhanced Grip: Pre-glued tactile gaskets with Anti-Slip Technology provide superior grip and security for the glass panels.
• Adjustability: Includes a 5-degree reversible pin for easy door closure adjustments and precise alignment.
• Weight Capacity:
- Two Hinges: Supports up to 80 lbs (36 kg) and a maximum door width of 28" (711 mm).
- Three Hinges: Handles up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).
• Glass-to-Glass Design: The 180-degree hinge configuration is perfect for frameless shower setups where glass panels need to be connected in a straight line.
• Installation: Easy installation with standard tools, and the main required gaskets are pre-glued to the hinge for a straightforward and secure setup.

Finishes Available

• Chrome
• Brushed Nickel
• Matte Black
• Satin Brass
• Polished Nickel
• Brushed Bronze
• Gun Metal
• Oil Rubbed Bronze
• White
• Antique Brass
• Polished Brass

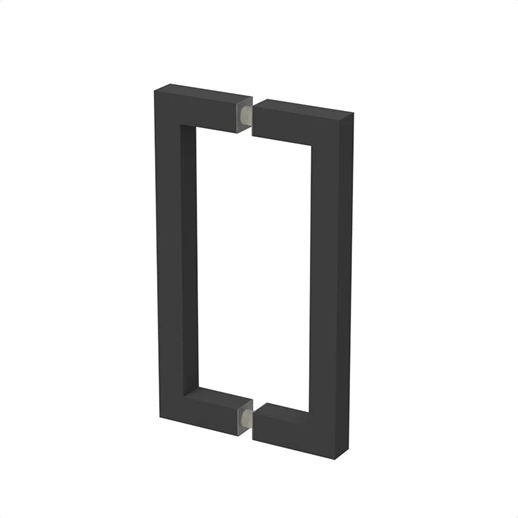

The GGH Square 8" Handle (S8X8) offers the perfect balance of modern design and practical functionality for both residential and commercial doors. Crafted from durable 3/4" (19 mm) brass tubing, this handle features a bold, square profile that adds a sleek and contemporary touch to any glass installation. Designed for glass thicknesses ranging from 1/4" to 1/2" (6 to 12 mm), the GGH Square Handle is ideal for a wide range of applications, from shower enclosures to office partitions. With precise 8" hole spacing and easy installation, it provides both aesthetic appeal and reliable performance.

• Materials: High-quality 3/4" (19 mm) brass tubing for strength and durability.
• Design: Bold, square profile adds modern sophistication to any installation.
• Glass Compatibility: Designed for 1/4" to 1/2" (6 to 12 mm) glass thickness.
• Installation: Simple installation with 8" (203 mm) center-to-center hole spacing and 1/2" (12 mm) hole diameter.
• Warranty: 5-year warranty for lasting performance.

Finishes Available

• Chrome
• Brushed Nickel
• Matte Black
• Satin Brass
• Polished Nickel
• Brushed Bronze
• Gun Metal
• Oil Rubbed Bronze
• White

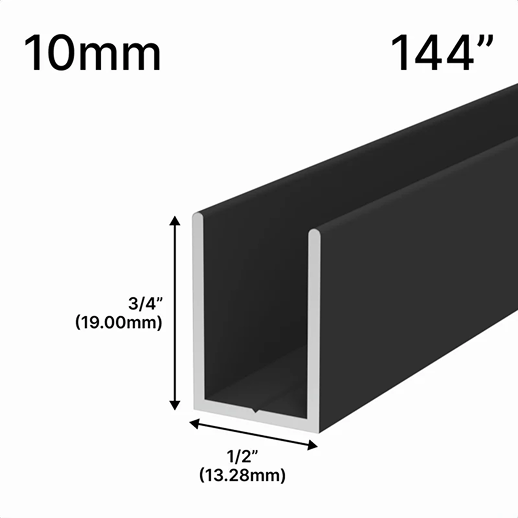

Our GGH 10mm (3/8") U-Channel is designed to enhance the elegance of frameless glass installations by offering a secure, low-profile solution. With a 3/4" depth, it maximizes glass exposure, providing a sleek, modern aesthetic ideal for shower enclosures, partitions, and other residential applications.

Crafted from corrosion-resistant materials, this U-Channel delivers durability and long-lasting support for 10mm glass panels. Its extended 144" length and compatibility with a variety of finishes make it perfect for larger installations, seamlessly coordinating with hinges, handles, and clamps to ensure a polished, cohesive look.

• Glass Compatibility: Designed exclusively for 10mm (3/8") glass panels.
• Depth: 3/4" depth for increased glass exposure and a modern aesthetic.
• Low-Profile Design: Sleek and subtle, enhancing the frameless glass look.
• Length: Stocked in 144" lengths for larger or continuous installations.
• Versatility: Suitable for mounting on floors, walls, or ceilings, providing flexibility for different project requirements.

Finishes Available

• Chrome
• Brushed Nickel
• Matte Black
• Satin Brass
• Gold
• Polished Nickel
• Brushed Bronze
• Gun Metal
• Oil Rubbed Bronze
