Post & Patch System
About Railing Posts - Pro Series - Engineered
Modern, Secure, and Built to Last – Grey Goat’s Architectural Railing Posts are designed for precision and performance.
Available in Round and Square profiles, with End, Inline, and Corner configurations ranging from 32" to 50", our posts are ideal for frameless glass railing systems in residential, commercial, and multi-storey applications. Each post is engineered from high-grade stainless steel (SS304 or SS316) and is compatible with top-mounted or fascia-mounted installations. Offered in multiple finishes such as Brushed Stainless, Matte Black, and Satin Brass, they deliver both structural integrity and sleek aesthetics.
System Includes
Pro Series – Square

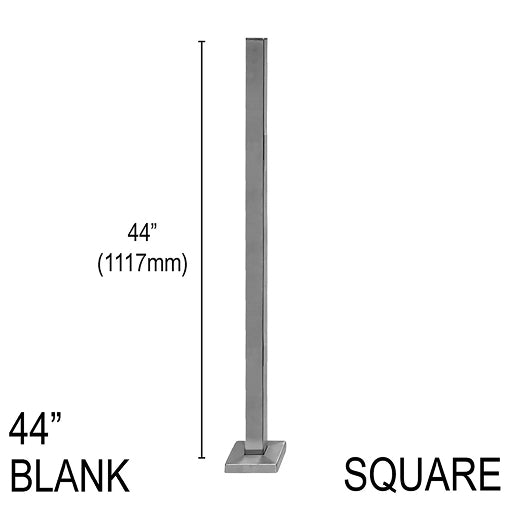

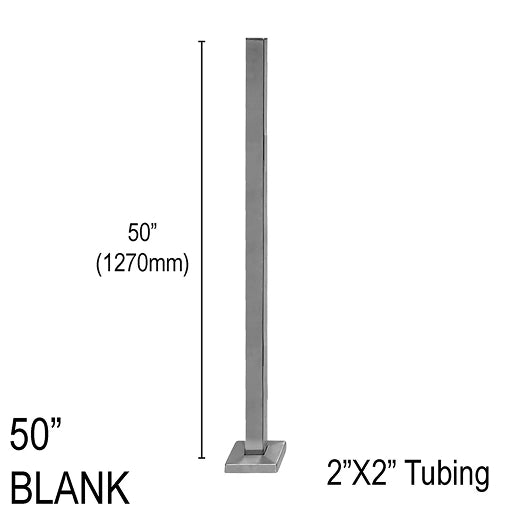

Blank Post

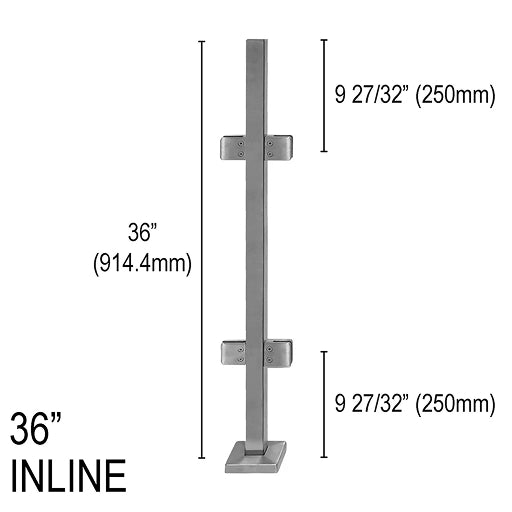

Center / Inline Post
End Post
Corner Post
Stairs Post
Optional Items
Screws & Bolts - 3/8" X 3" (For Posts - Concrete Installation)
Hex Lag Bolt 3/8" X 3-1/2" (Wooden Installation)

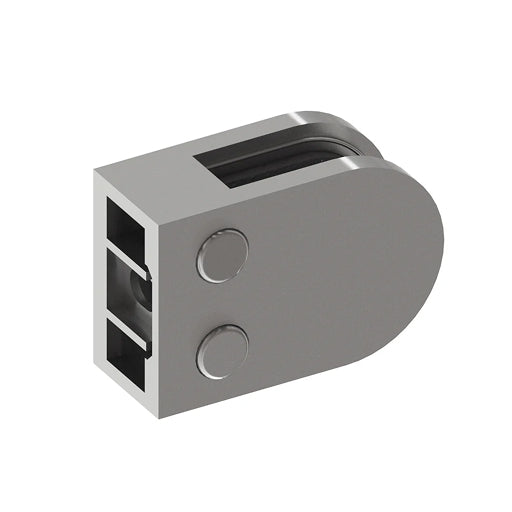

Railing Clamps (Square/ Round)
Handrails
Handrail Brackets, Saddles, Support, Top Caps, Base Cover Plate, Elbow and End Caps
Wall Mount Flange For 40mm Square Handrail and rails with / without Adjustable
Pro Series – Round
Blank Post
Center / Inline Post
End Post
Corner Post
Stairs Post
Key Features
Top Mount
- Post Heights Available: 32", 36", 38", 42"
- Glass Compatibility: 10 mm (3/8") and 12 mm (1/2") tempered glass
- Installation: Deck mount with pre-attached base plate
- Building Code Compliance: Engineer stamped to meet safety standards
- Post Types Available
- Round or Square
- Inline / End / Corner
- Material − Body: SS316 Heavy-Gauge Stainless Steel
- Colors − Brushed Stainless Stee, Matte Black
Side Mount
- Configurations Available: Inline / End / Corner
- Post Dimensions: 40 mm x 40 mm (1.57” x 1.57”) square
- Available Heights: 32", 36", 38", 42"
- Glass Compatibility: 10 mm (3/8") and 12 mm (1/2") tempered glass (gaskets included)
- Mounting Type: Side-mounted with precision-fit base plate
- Compliance: Engineered to meet National and Ontario Building Codes
- Material: Body= Heavy-Gauge SS316 Stainless Steel
- Colors − Brushed Stainless Steel, Matte Black
- Custom colors Available Upon Request

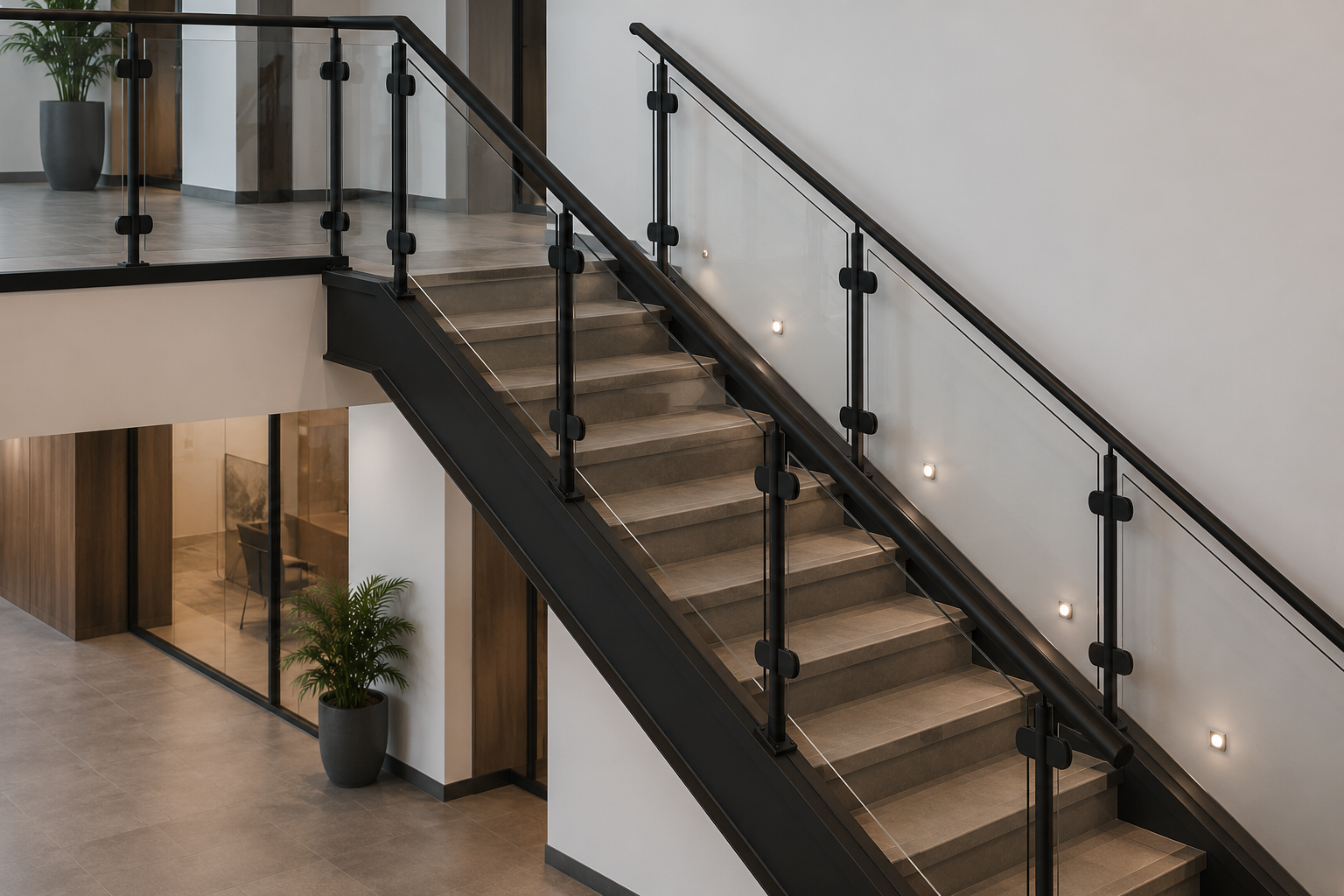

Stair Mount
- Post Dimensions: 40 mm x 40 mm (1.57” x 1.57”) square
- Available Heights: 32", 36", 38", 42"
- Glass Compatibility: 10 mm (3/8") and 12 mm (1/2") tempered glass
- Mounting: Deck-mount installation with pre-attached base plate
- Application: Suitable for stair railing configurations
- Compliance: Engineer stamped to meet National and Ontario Building Codes
- Material: Body=Heavy Gauge SS316 Stainless Steel
- Colors: Brushed Stainless Steel, Matte Black
