Base Shoe System
ARCH-LOC™ SERIES - 69 Series - 86 Series
Our ARCH-LOC™ Base Rail Systems are engineered to deliver unmatched ease of installation, superior precision, and reliable durability. With 30mm tilt adjustment in each direction, achieved entirely from the inside of the balcony, this innovative system simplifies alignment and reduces installation time by up to threefold compared to traditional methods. Designed with versatility and quality in mind, the ARCH-LOC™ System offers solutions for a wide range of applications, ensuring a perfect fit for any project. From residential balconies to commercial facades, this is the ultimate choice for professional installers and architects alike.
System Includes
ARCH-LOC™ - 69 SERIES
Top Mount / Side Mount for 120" Length
Aluminum / Stainless Steel claddings and gaskets x 2 pcs

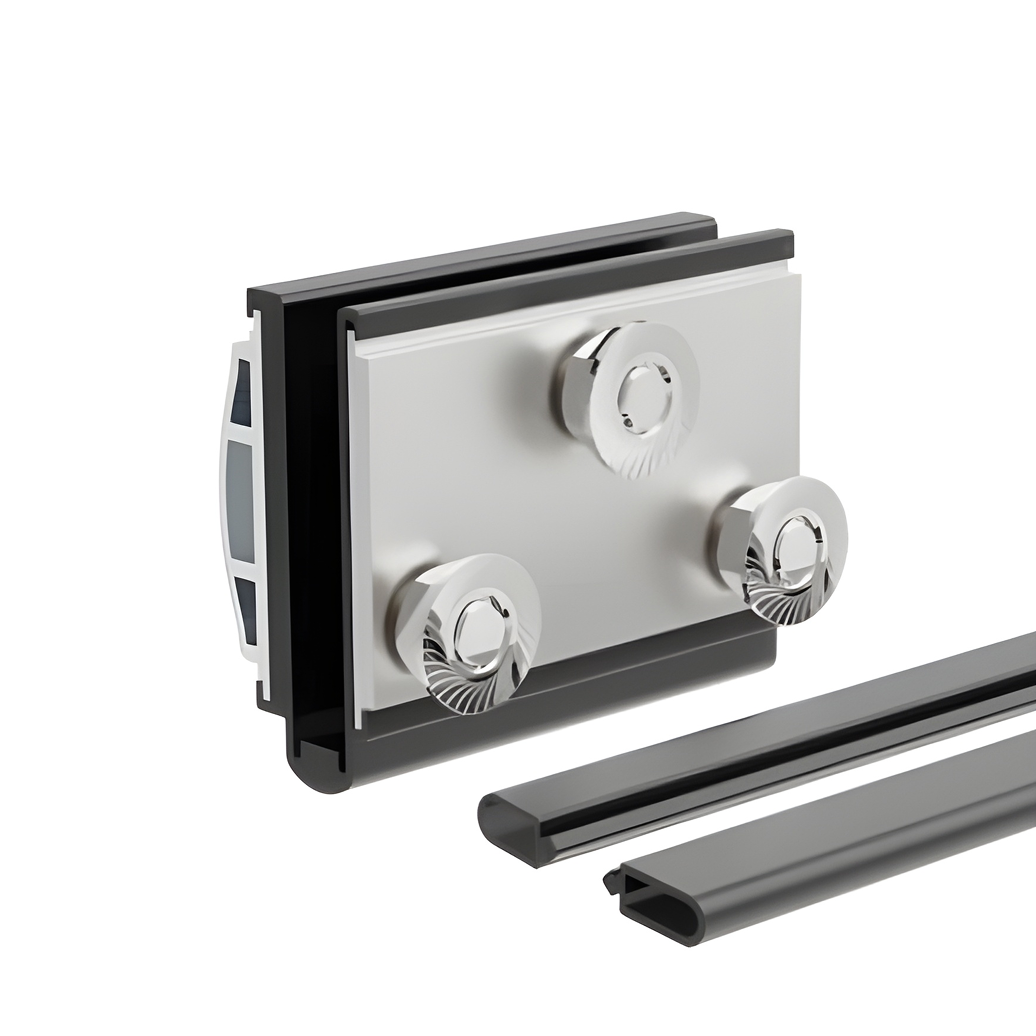

ARCH-LOC™ Clamp Pack x 10 pcs

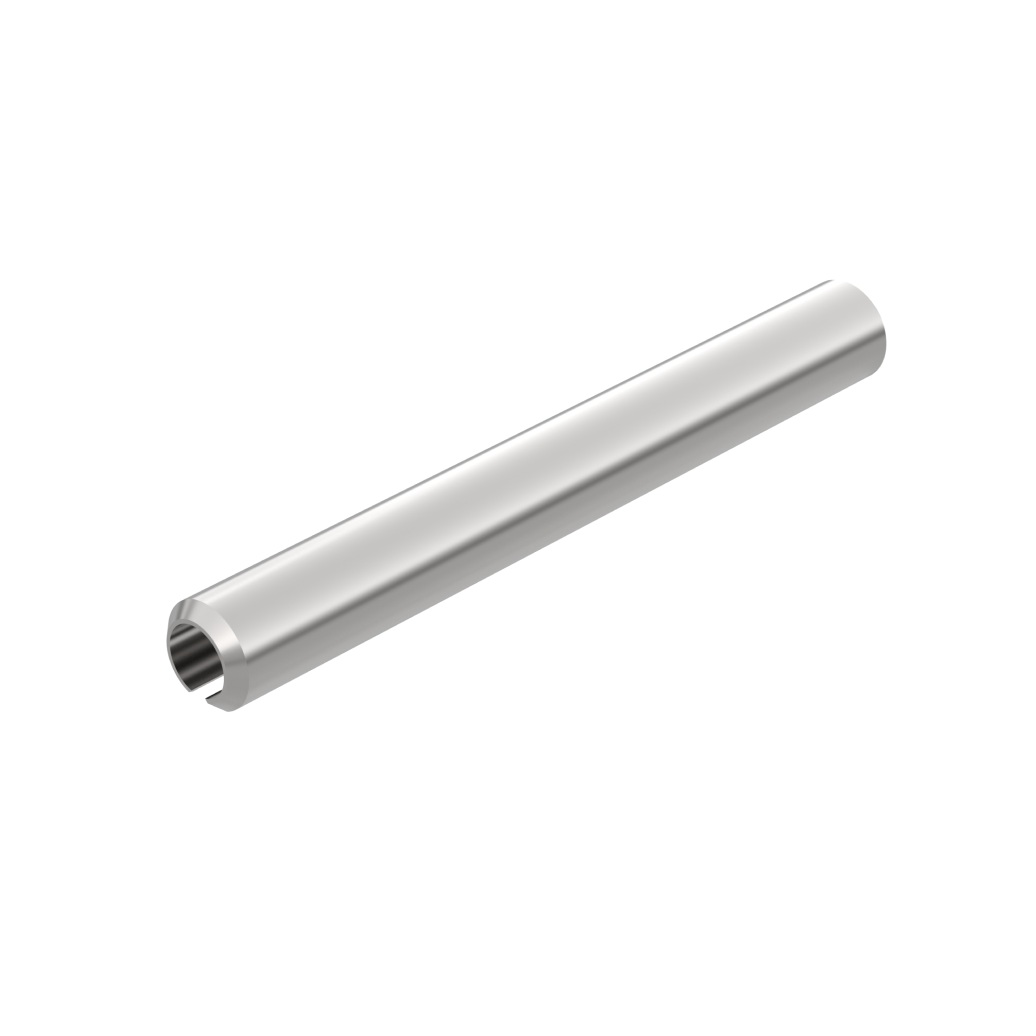

Joining Pins x 4pcs

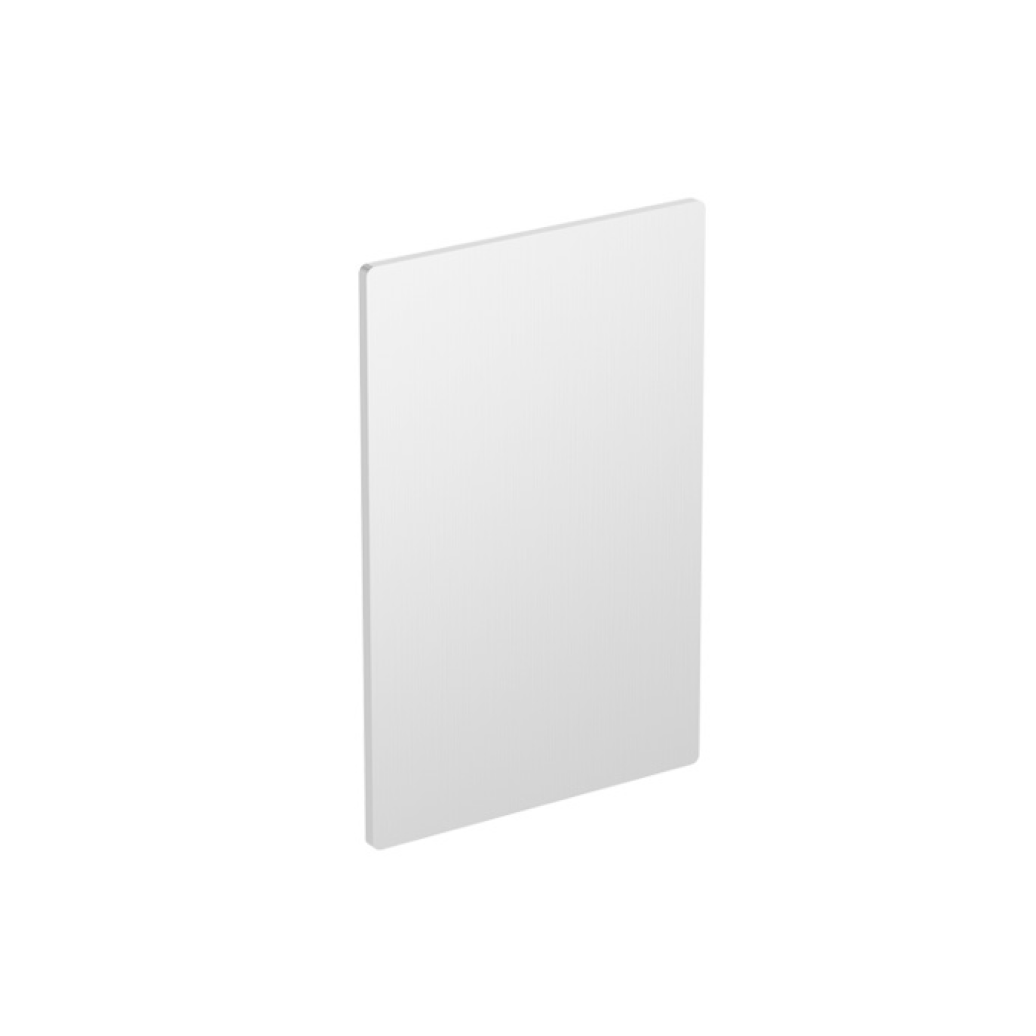

End Caps x 2 pcs
3.94 Inches gap cover x 1pcs

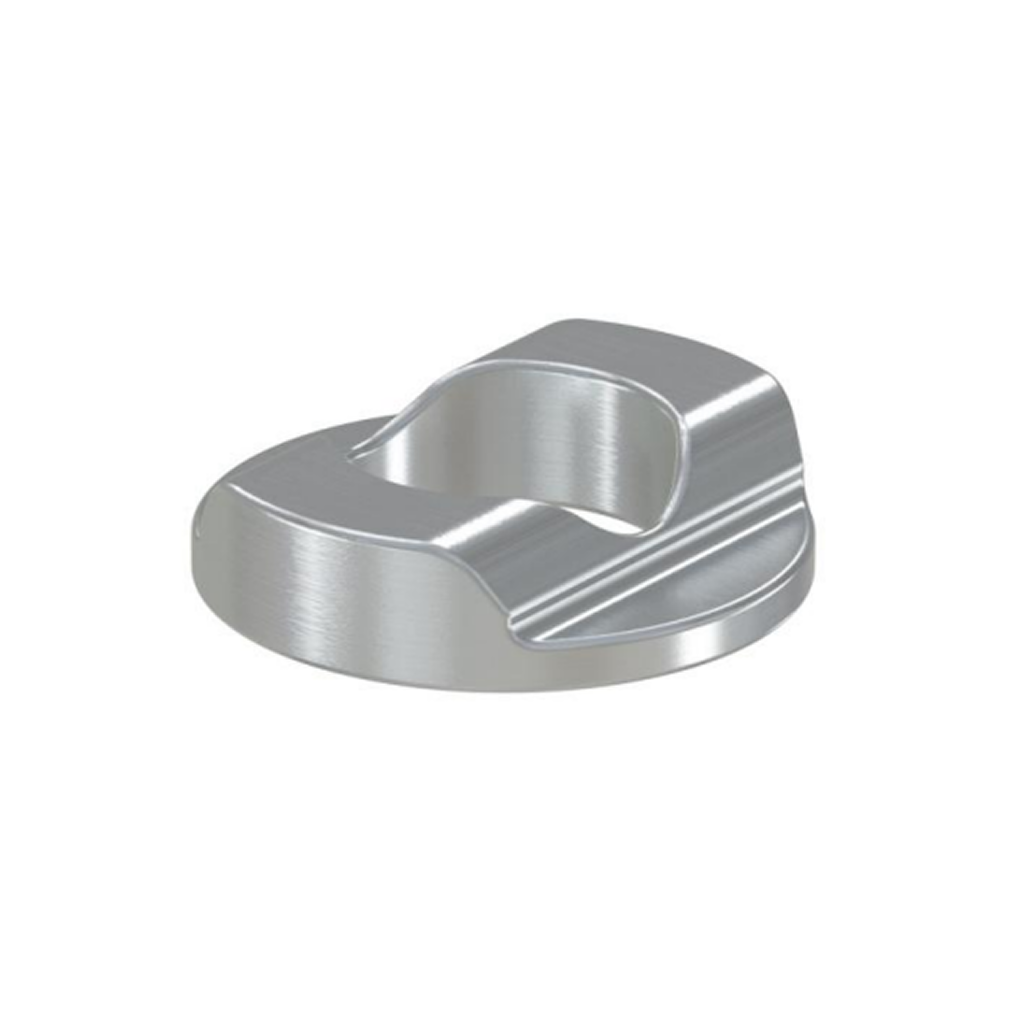

Stabilizer washer x 10 pcs
Flat Washers x 10 pcs
ARCH-LOC™ - 86 SERIES
Top Mount (120") length
10ft Base Shoe with top fix fabrication
Aluminum / Stainless Steel claddings
ARCH-LOC™ Clamp Pack x 10 pcs and gaskets x 2 pcs
Joining Pins x 4pcs
End Caps x 2 pcs
3.94 Inches gap cover x 1pcs
Stabilizer washer x 10 pcs
Flat Washers x 10 pcs
Top Mount (240") Length
Aluminum / Stainless Steel claddings and gaskets x 2 pcs
ARCH-LOC™ Clamp Pack x 20 pcs
Joining Pins x 4pcs
End Caps x 2 pcs
3.94 Inches gap cover x 2pcs
Stabilizer washer x 20pcs
Flat Washers x 20 pcs
Mill Top Mount 120” length
1 X 10ft Mill Finish Base Shoe
10 X Stabilizer Washers
4 X Joining Pin
1 X Gap Rubber
No cladding
Mill Top Mount / Side Mount (120” length)
1 X 10ft Mill Finish Base Shoe
10 X Stabilizer Washers
4 X Joining Pin
1 X Gap Rubber
No cladding
Optional Items for 69 & 86 Series

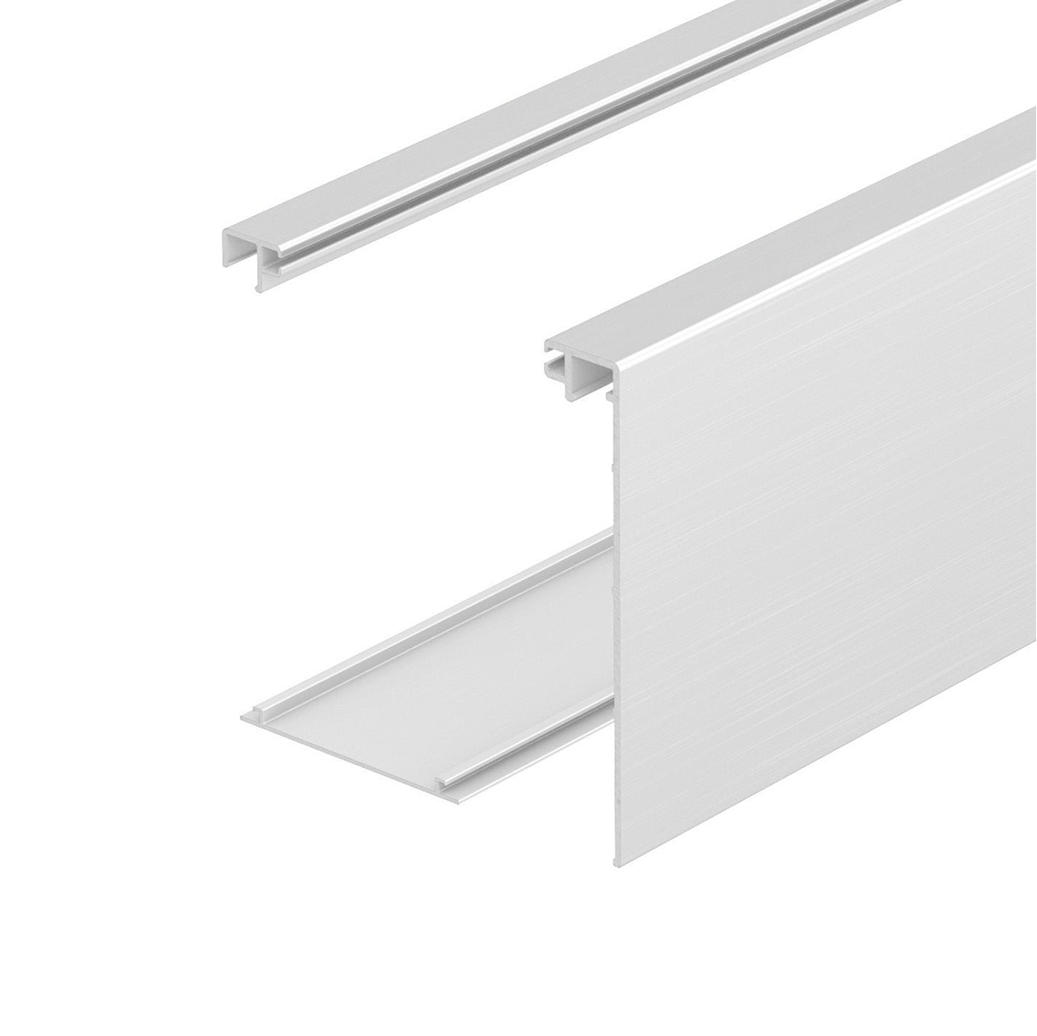

Top Mount Cladding (120") - 69 and 86 Series
Top Mount Cladding (240") - 69 Series
90º Top Fix Internal Corner - 69 and 86 Series

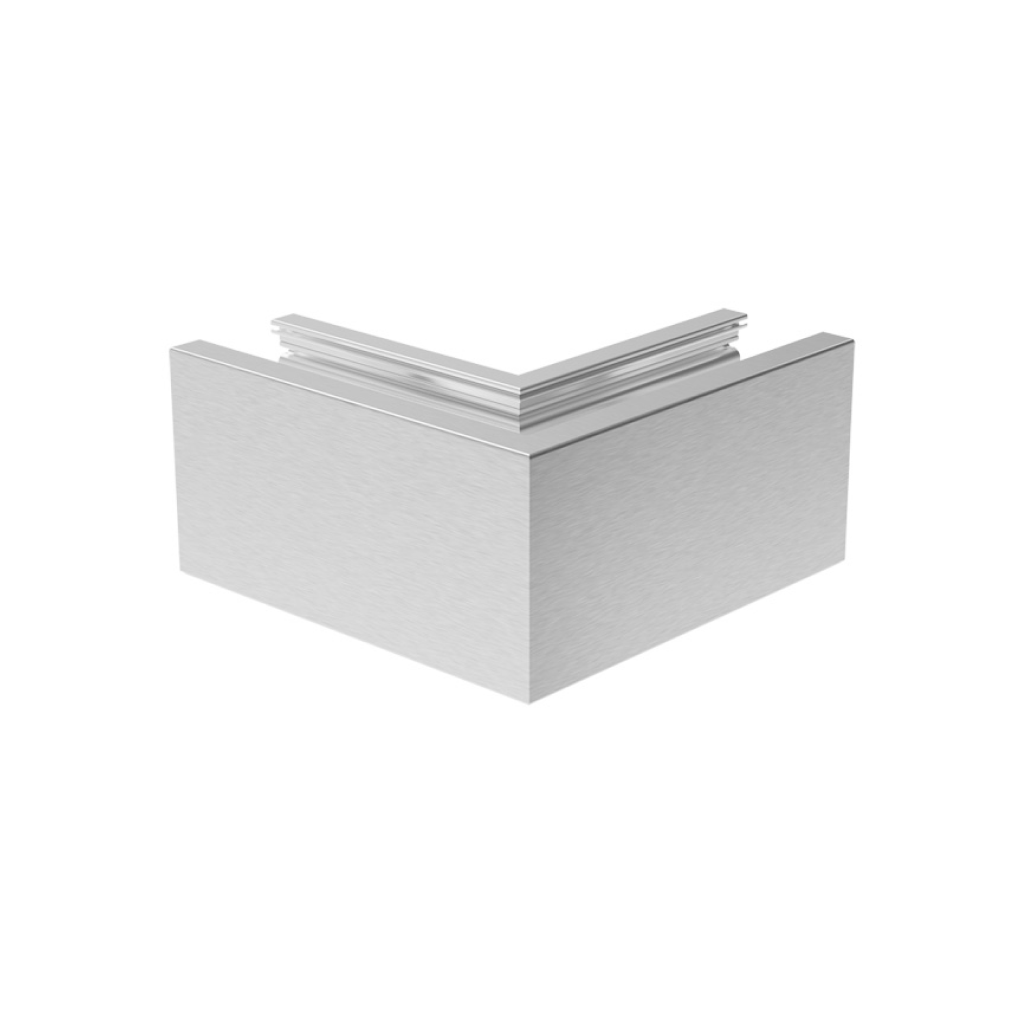

90º Top Fix External Corner - 69 and 86 Series
Side Mount Cladding (120") - 69 Series
Recessed Mount Cladding (120") - 69 Series

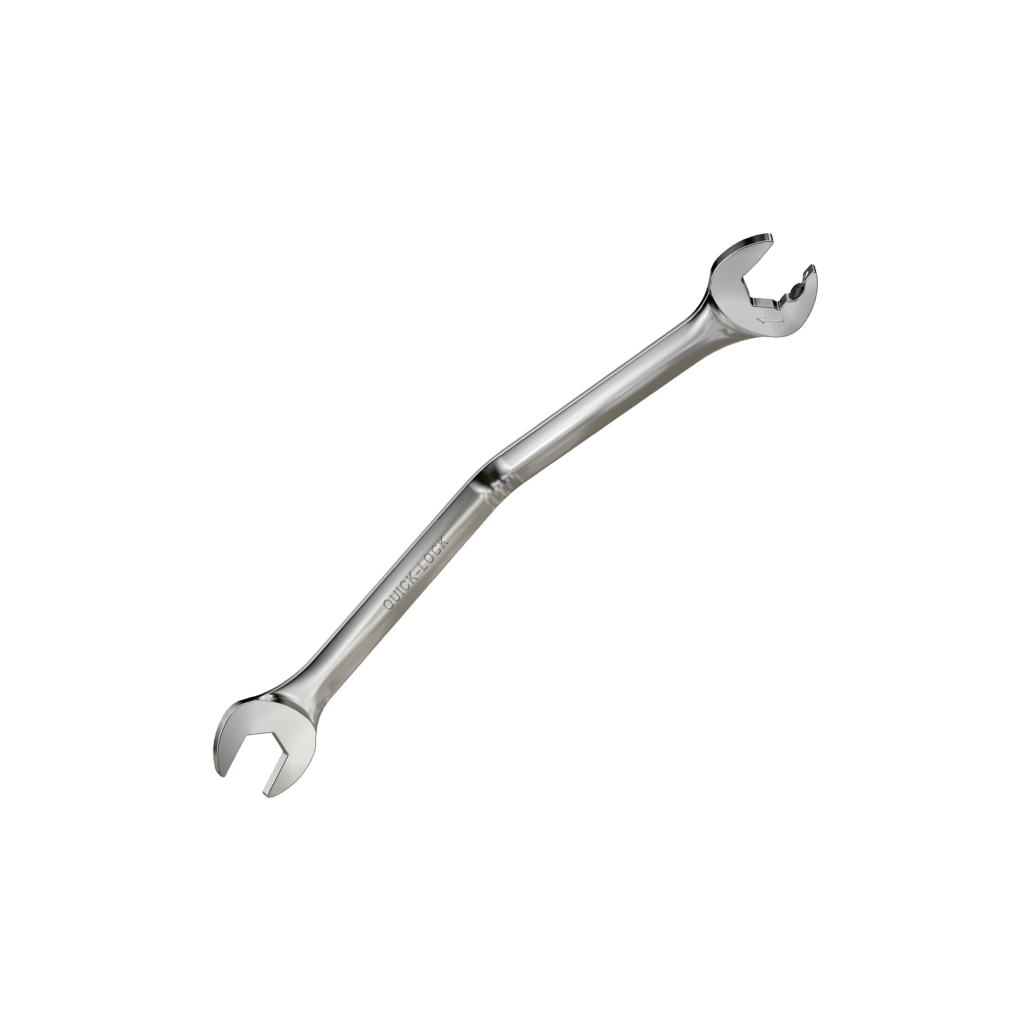

Arch-Loc Base Shoe - Wrench - 69 and 86 Series
Ratcheting Wrench - 69 and 86 Series
Cover Kit for Side Fixed – 86 Series
Glass Kit for 3/8"-1/2" Glass
Glass Kit for 19/32"-11/16" Glass
Glass Kit for 3/4"-27/32" Glass
Key Features
69 series
- Top Mount ARCH-LOC™ Base Shoe.
- Suitable for glass from 1/2" (12 mm) thickness.
- Base Shoe Length: 10 FT
- Engineered and stamped as per National and Ontario Building Codes.
- Glass height 1-1/2" above ground level.
- Material: High Strength Pure Aluminum Construction.
- Full specifications for the Arch-Loc product line are included in the Feature Sheet.
Finishes Available
- Brushed Anodized Aluminum
- Matte Black Anodized Aluminum
- Brushed Stainless Steel
- Polished Stainless Steel
86 series
- Top Mount ARCH-LOC™ Base Shoe.
- Suitable for glass from 19/32" - 27/32" (15mm - 21.4 mm) thickness.
- Base Shoe Length: 10 FT.
- Engineered and stamped as per National and Ontario Building Codes.
- Glass height 1-1/2" above ground level.
- Material: High Strength Pure Aluminum Construction.
- Full specifications for the Arch-Loc product line are included in the Feature Sheet
Finishes Available
- Brushed Anodized Aluminum
- Matte Black Anodized Aluminum
- Brushed Stainless Steel
- Polished Stainless Steel
Finishes Available
- Brushed Anodized Aluminum
- Matte Black Anodized Aluminum
- Brushed Stainless Steel
- Polished Stainless Steel
Kit Include
- 10ft Base Shoe with top fix fabrication.
- Aluminum/Stainless Steel claddings and gaskets x 2 pcs.

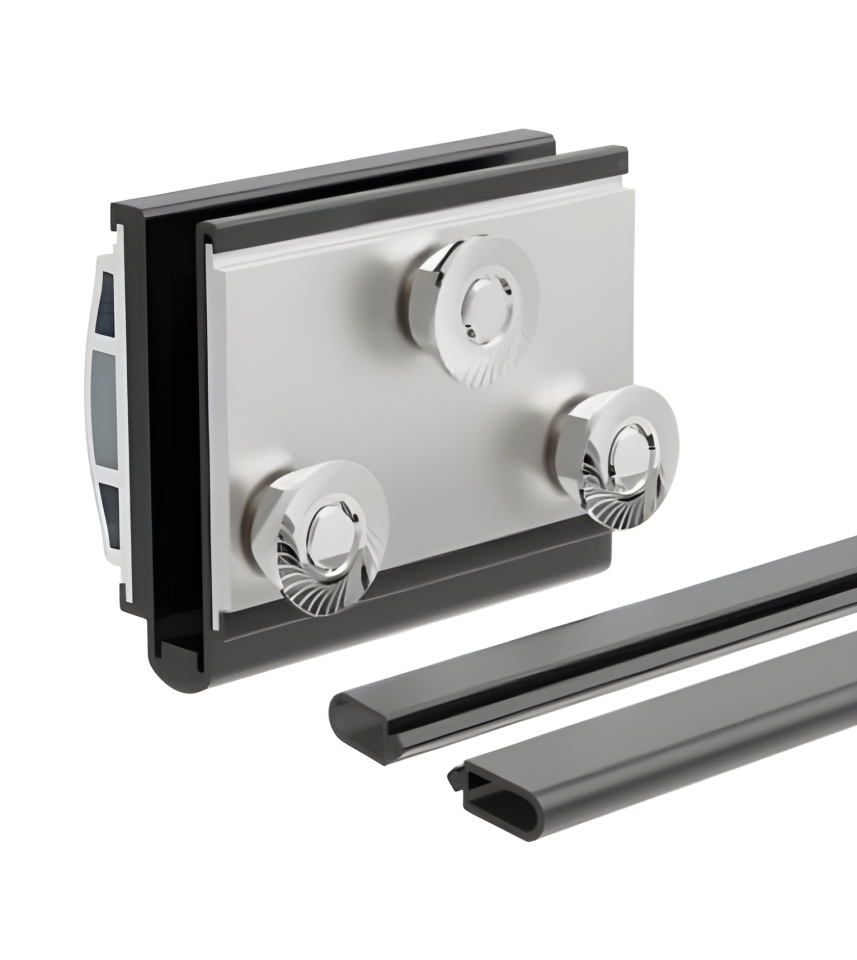

- ARCH-LOC™ Clamp Pack x 10 pcs.
- Joining Pins x 4pcs.
- End Caps x 2 pcs.
- 3.94 Inches gap cover x 1pcs.
- Stabilizer washer x 10 pcs.
- Flat Washers x 10 pcs.
