Store Front System

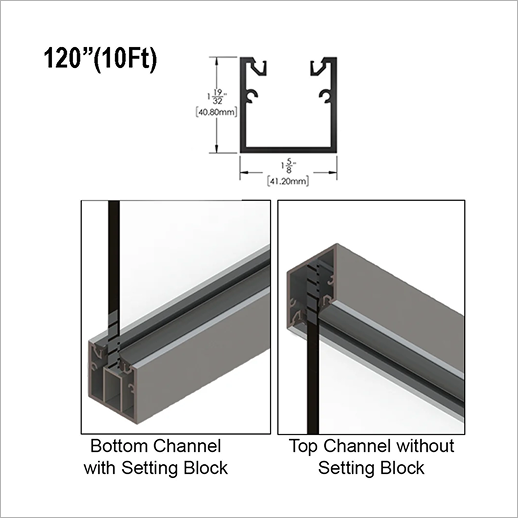

The Architectural U-Channels offer a robust and streamlined solution for securing glass panels in storefront applications. Designed with durability and ease of installation in mind, these channels provide exceptional support and aesthetics for 1/2" (12mm) and 3/8" (10mm) glass panels.

• Length: Available in a standard 120" (10 ft) length for versatile applications.
• Inclusive Gaskets: Includes 240" of roll-in gaskets for 1/2" glass to ensure secure and tight installations. ( roll-in rubber gaskets for 3/8" glass is sold separately) 
• Durable Material:  Standard 6063-T5 aluminum alloy & Crafted for long-lasting performance in commercial settings.

Finishes Available

• Satin Anodized
• Matte Black

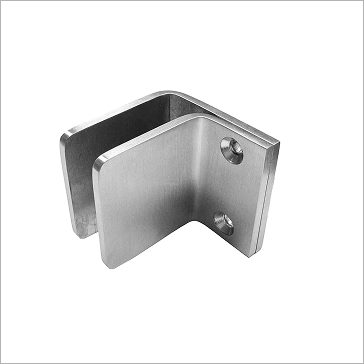

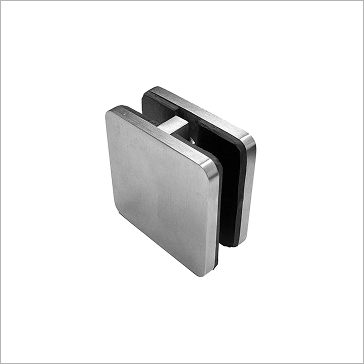

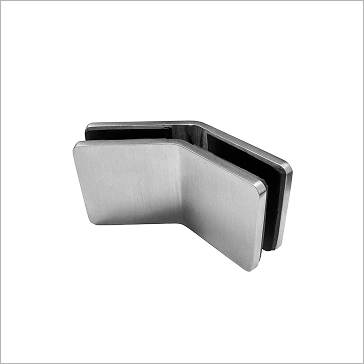

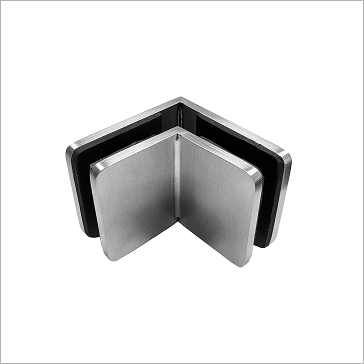

The GGS Mall Front Clamp series offers a reliable and stylish solution for joining vertical glass panels, designed for use with 3/8" to 3/4" (10 to 19 mm) thick monolithic tempered glass. With robust support and enhanced rigidity, this clamp minimizes flexing, ensuring stability and added security between glass panels.

Made from premium Grade 304 Stainless Steel, the Mall Front Clamp is available in both brushed stainless and matte finishes, seamlessly complementing various architectural styles. For applications with thicker glass up to 3/4" (19 mm), custom-order studs are available to provide the perfect fit.

• Versatile Glass Compatibility: Works with 3/8" to 3/4" (10 to 19 mm) thick monolithic tempered glass; special-order studs available for thicker applications.
• Secure and Stable Joint: Connects vertical glass panels to reduce movement and improve structural integrity.
• Durable Build: Constructed from Grade 304 Stainless Steel for lasting strength, offered in brushed or polished finishes.
• Simple Installation: Comes with flat head Phillips screws (included), making for a quick and secure setup.
• Safety Gap Recommendation: A minimum gap of 7/32" (5.6 mm) between panels is suggested for optimal stability.

Finishes Available

• Brushed Stainless
• Matte Black 
• Additional Custom Finishes

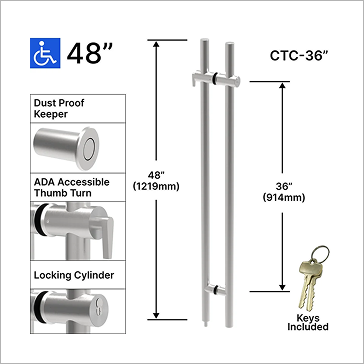

The GGH Secure Series Locking Ladder Pulls provide a sleek and secure solution for glass doors in residential and commercial spaces. Featuring a fully concealed deadbolt locking system with a top-mounted keyed thumb turn and a bottom locking mechanism, these ladder pulls deliver both functionality and style. Constructed from premium 304 Grade Stainless Steel, these pulls are designed for durability, making them perfect for high-traffic environments. Ideal for 1/2" (12mm) to 3/4" (19mm) tempered glass doors, these locking pulls combine accessibility and security in a streamlined design.

With multiple finishes available, the GGH Locking Ladder Pulls provide both elegance and dependable performance, making them a versatile choice for a range of architectural and design applications.

• Suitable for Glass Thickness: 1/2" (12mm) to 3/4" (19mm) tempered glass
• Fully Concealed Deadbolt Locking System: Includes top-mounted keyed thumb turn and bottom locking mechanism
• Material: 304 Grade Stainless Steel for superior durability and corrosion resistance
• ADA Compatible: Ensures accessibility compliance for various environments
• User-Friendly Operation: Lock mechanism is conveniently positioned at a comfortable height of 42" (1.07 m) above the floor, ensuring easy access without the need to bend
• Designed for secure floor locking
• Ladder Pull includes hardware for 1/2" to 3/4" (12 to 19 mm) thick tempered glass with standard 1-3/4" (44.50 mm) threaded rod connectors.
• Additional [LLPEXT134] Ladder Pull Fastener for 1-3/4" Thick Door is available (Sold Separately).
• Includes a lock with 3 keys and Allen keys.
• Thread: M8 thread for secure installation.

Finishes Available

• Brushed Stainless
• Polished Stainless
• Matte Black
• Additional Custom Finishes

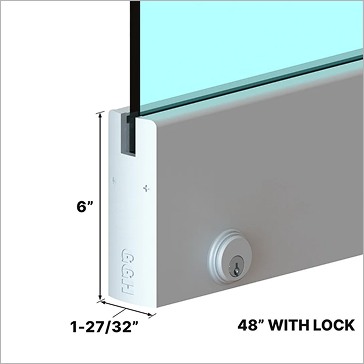

The DLUX 6" Door Rail is a reliable solution for secure glass door installations, featuring a built-in lock for enhanced security. With a 48" length and made from 6060 T6 Aluminum, this door rail combines durability with ease of installation. The system is designed for quick setup with no expensive tools required, saving both time and money. Cylinder options are sold separately for customization.

• Durable Build: Constructed from high-quality 6060 T6 Aluminum for superior strength and corrosion resistance.
• Efficient Installation: Designed for quick and easy installation with no expensive tools required, ensuring time and cost savings.
• Locking Mechanism: Includes a built-in locking mechanism, offering enhanced security for glass doors.
• Compact Dimensions: 48" length for compatibility with standard installations.
• Endcap (Sold Separately): The specially designed endcap [DLUX6DEND],  available in  all finishes as of Base Shoe is used to securely attach at the ends for a clean and finished look.

Finishes Available

• Brushed Stainless
• Matte Black 
• Additional Custom Finishes

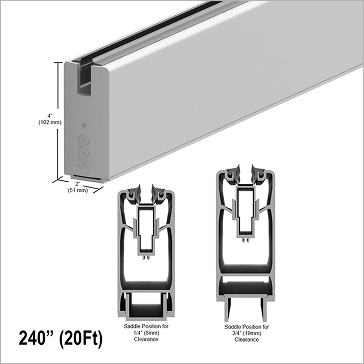

The Grey Goat 4" Architectural Sidelite Rail is an essential component for storefront installations, offering comprehensive hardware solutions when paired with the 4" Architectural Door Rail System. This system is designed to be compatible with existing hardware, making it ideal for replacement work and seamless integration. The Grey Goat 4" Architectural Sidelite Rail is used with the door rail system to support adjacent fixed glass in storefront and commercial installations.

• Compatibility: Suitable for use with the 4" Architectural Door Rail System, ensuring a comprehensive solution for storefront installations
• Length: 240" (20ft)
• Clearance Options: Includes a reversible saddle for 1/4" or 3/4" clearance
• Roll-In Gasket: Includes roll-in gasket for 1/2" glass

Finishes Available

• Satin Anodized
• Matte Black Anodized
• Stainless Steel

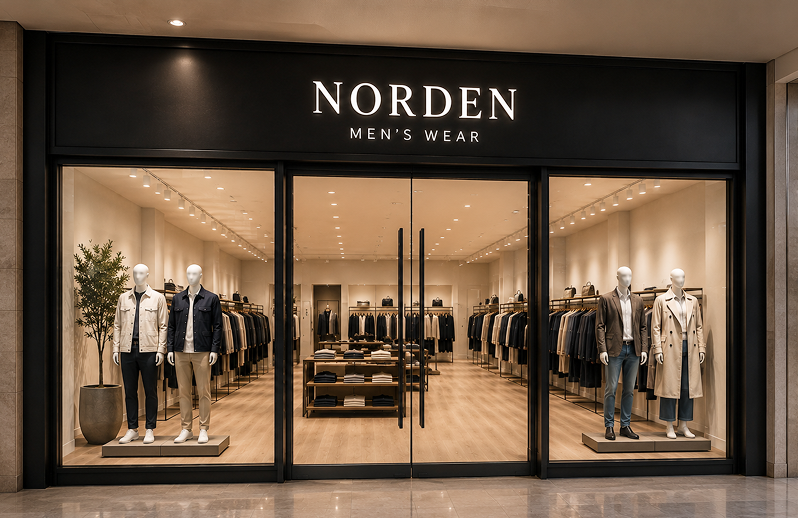

Ideal for secure glass door installations in residential, commercial, and hospitality settings, including shopping malls, office entrances, and high-traffic areas where safety and durability are essential.
