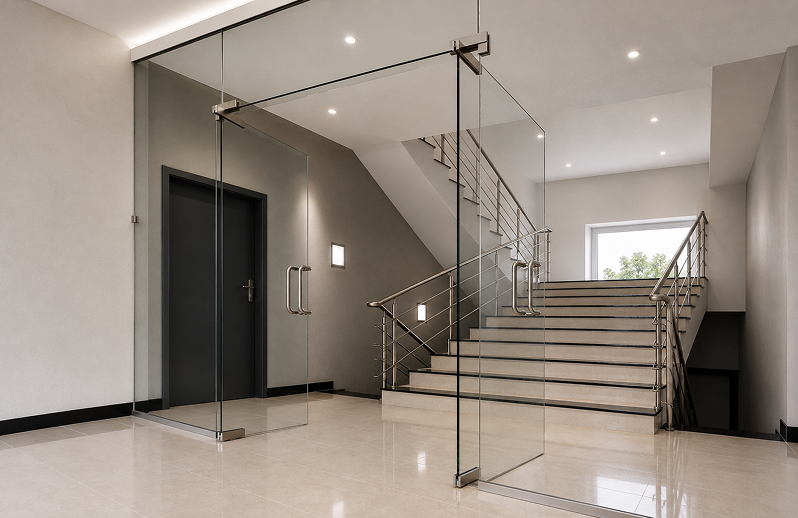

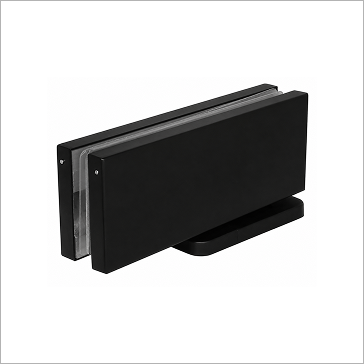

Patch and Pivot system

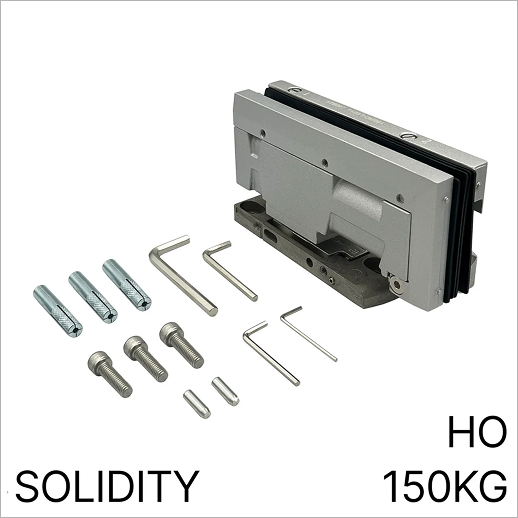

Engineered for high-performance and durability, this fitting supports 10mm (3/8") and 12mm (1/2") glass and features precise manufacturing tolerances of 0.005mm to 0.01mm. It is cycle-tested for up to 500,000 open/close operations, ensuring reliability in high-traffic areas.

The system offers two adjustable speed settings with a Hold Open function at 90 degrees, making it easy to control door movement. It is designed to handle a maximum door weight of 150KGs (330.69) and a door width of up to 48" (1219.2mm). The bottom plate allows for convenient adjustment, ensuring flexibility during installation.

Constructed from Grade 304 Stainless Steel with a custom aluminum cover plates, the Solidity Series is suitable for both interior and exterior applications.

• Maximum Weight: 150 Kg (330.70 lb)
• Maximum Door Width: 48" (1000mm)
• Two Adjustable Speed Settings
• Hold Open at 90 Degrees
• Maximum Weight: 150 Kg (330.70 lb)
• Maximum Door Width: 48" (1000mm)
• Two Adjustable Speed Settings
• Hold Open at 90 Degrees
• Cycle Tested for 500,000 Operations
• Made of Grade 304 Stainless Steel / Aluminum Cover Plates
• 2-Year Warranty

Finishes Available

• Brushed Stainless
• Matte Black
• Polished Stainless
• Satin Brass
• Satin Anodized

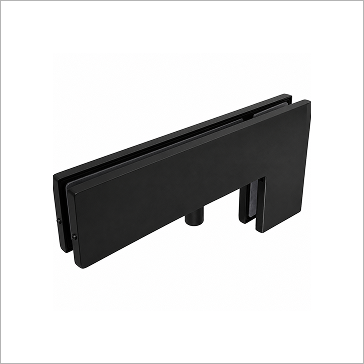

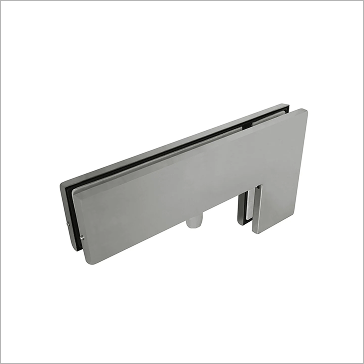

For transoms exceeding 100 lbs. (45.4 kg), ceiling support is necessary to prevent the patches from slipping under excessive weight. Options include the PFIT94 Patch Fittings. For 3/8" or 1/2" (10 or 12 mm) glass. For further assistance, please contact our Technical Sales Department.

Constructed from Aluminum with a custom Grade 304 Stainless Steel cover plate, the Transom Patch is suitable for both interior and exterior applications.

• Maximum Weight: 100KGs (220.462LBS)
• Maximum Door Width: 39" (1000mm)
• Maximum Height : 102" (2590mm)
• Cycle Tested for 500,000 Operation
• 2-Year Warranty

Finishes Available

• Brushed Stainless
• Matte Black 
• Polished Stainless
• Satin Brass
• Satin Anodized
• Custom Finishes Available

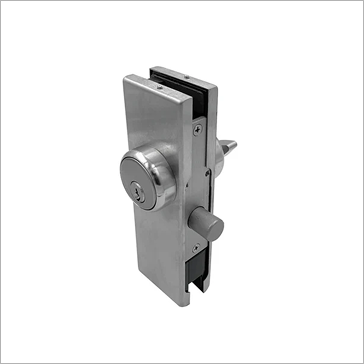

GGH's GDLUS Series Patch Lock features an American-style cylinder and a heavy-duty locking mechanism, offering robust security and modern design for frameless glass doors. Constructed from stainless steel, it guarantees long-lasting durability and corrosion resistance. The cylinders are all uniquely keyed for added security, making it an excellent choice for both commercial and residential applications. Additionally, the lock comes with a flat floor mount strike plate, providing flexibility and ease during installation. 

• Glass Thickness: 3/8" to 1/2" (10mm to 12mm)
• Material: Stainless Steel
• Glass Compatibility: Monolithic Tempered Glass

Finishes Available

• Brushed Stainless
• Polished Stainless
• Matte Black 
• Satin Anodized 
• Satin Brass

Component often paired with

• All Patch Locks

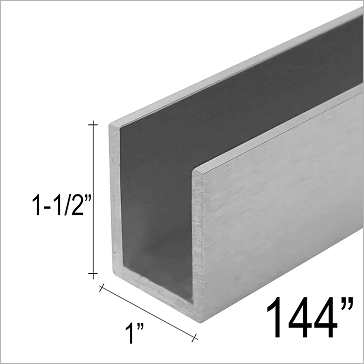

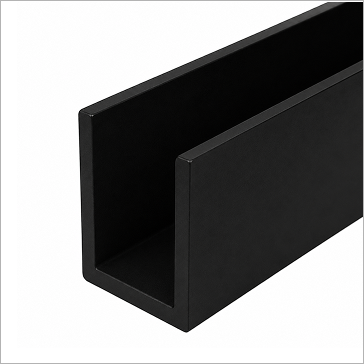

The Shallow U-Channel is available in stock lengths of 144" (12 feet) and 288" (24 feet) and is designed to accommodate 3/8" or 1/2" (10 or 12 mm) glass. It provides the most economical way to glaze heavy glass, particularly in 'lift and drop' installations.

• Versatile Applications: Ideal for glass partitions, wine rooms, architectural installations, retail store fronts, conference rooms, and glass balustrades.
• Low-Profile Design: Shallow 1.5” height for a minimalistic look while ensuring stability.
• More Available Sizes: 1"x1", 1"x1.5", 1"x2"
• Glass Compatibility: Suitable for glass thicknesses of 10mm (3/8") and 12mm (1/2").
• Available Lengths: Offered in 144" (12 feet) and 288" (24 feet) lengths for various project needs.
• Flexible Use: Ideal for lift and drop glazing applications with silicone sealant.
• Endcaps: Matching end caps of 1"x1", 1"x1.5", 1"x2" available to ensure stability and closure at the ends.
• Roll-in Rubber: Roll-in Rubber available for 10mm, 12mm & custom size in 500' length.

Finishes Available

• Brushed Stainless
• Satin Anodized
• Matte Black
• Custom Finishes (contact: products@ggshardware.com)

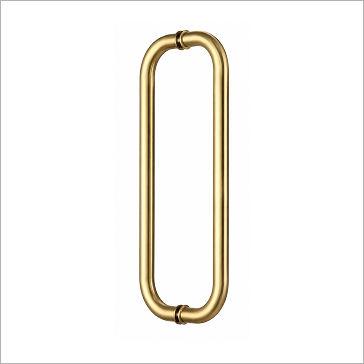

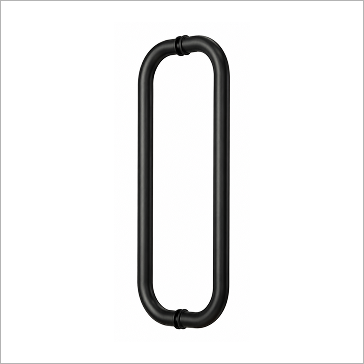

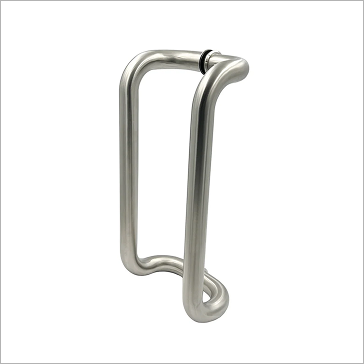

Designed for use with both glass doors (3/8" - 3/4" thick) and aluminum/wood doors up to 1-3/4" thick, these handles provide versatility and robust functionality. Available in multiple finishes, the GGS Offset Tubular Handles are sure to enhance the look and performance of your door hardware.

• Material: Premium SS304 stainless steel for superior durability
• Tubular Diameter: 1" (25.4mm) for a modern and comfortable grip
• Suitable for Glass Thickness: 3/8" - 3/4" (10mm - 19mm) tempered glass
• Suitable for Wood/Aluminum Door Thickness: Up to 1-3/4" (44mm)
  Offset: 3" (76 mm) from Center
• Hole Spacing: 12" on center with 5/8" (16mm) diameter holes
• Simple Installation: Prepped for back-to-back mounting with included fasteners
• Ladder Pull includes hardware for 3/8" to 3/4" (10 to 19 mm) thick tempered glass with standard custom-made connecting screws.
• Additional hardware is included in the package for installation on wood or aluminum doors up to 1-3/4" (44 mm) thick.
• Allen keys are included for easy installation.
• Thread: M8 thread for secure installation.

Finishes Available

• Brushed Stainless
• Matte Black
• Satin Anodized
• Custom finishes available upon request
